FARO FOCUS S150 in mint condition

Selling Used Faro Focus S150 Scanner, 1-Year Manufacturer Warranty, License FARO SCENE Software and Maintenance Contract

$18,500

Contact Us

FARO Focus S-150 Laser scanner in mint condition with Carbon Tripod

manufacture: 2018

Condition: in mint condition like new only 12 months old.
calibration and Warranty until February 2021
This unit was just calibrated on 02/2020, latest firmware version installed.


Focus-S 150 Features:
Range: 0.6 - 150m
High Dynamic Range (HDR) Photo Recording 2x/3x/5x
Measurement Speed: up to 976,000 points/second
Ranging Error: ± 1mm
Sealed Design - Ingress Protection (IP) Rating Class 54
On-site Compensation
Accessory Bay
Angular Accuracy: 19 arc sec for vertical/horizontal angles
Integrated Colour Camera: Up to 165 mio. pixel
Laser Class: Laser class 1
Weight: 4.2kg
Multi-Sensor: GPS, Compass, Height Sensor, Dual Axis Compensator
Size: 230 x 183 x 103mm
Scanner Control: via Touch Screen Display and WLAN

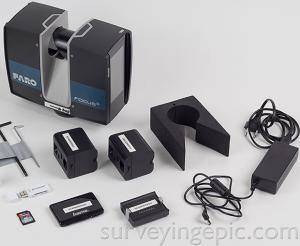

Includes:

  • FARO FocusS 150 Scanner
  • 2x Battery
  • Charger and power adapter
  • 32GB SD card
  • USB3 card reader
  • Cleaning fluid and paper towels
  • 2x Allen key
  • Quick release and carbon tripod extra long series.
  • License SCENE Software and Maintenance Contract


Total weight: 10 KG

FARO LASER SCANNER FOCUS S150 | THE WORLD'S MOST POPULAR TERRESTRIAL LASER SCANNER WITH ULTRA-HIGH ACCURACY AND INGRESS PROTECTION

The ultra-portable FocusS 150 enables fast, straightforward and ultra-high accurate measurements of objects and buildings. It records architectural façades, complex structures, production and supply facilities, accident sites, and large-volume components delivering realistic and true-to-detail scan results with a range of 150m per scan. This Faro FocusS 150 laser scanner enable to capture fast, straightforward and accurate measurements of complex objects and buildings. The intuitive touch-screen of the FocusS models has been increased in size and clarity to deliver an extraordinary user experience. A built-in 8 mega-pixel, HDR-camera captures detailed imagery easily while providing a natural color overlay to the scan data in extreme lighting conditions. Familiar traits such as light weight, small size and a 4.5-hour battery runtime per charge makes the FocusSLaser Scanner truly mobile for fast, secure and reliable scanning.

The FocusS 150 is a mid-range device offering precise scanning up to 150m. With their sealed design, both models are certified via the industry standard Ingress Protection (IP) Rating, and classified in Class 54 for environmental protection. The devices are built to safeguard against intrusions such as dirt, dust, fog and rain as well as other outdoor elements which typically occur in challenging scanning conditions. An addtion the two laser scanners offer a future-proof interface to connect additional accessories to the scanner and provide a specific on-site compensation routine.

Remote scanning as well as almost limitless scan data sharing via SCENE Webshare Cloud make the laser scanning solution truly mobile.

Features of the new FocusS Laser Scanner

The most recent FocusS series combines all benefits from FARO’s well-known Focus3D Laser Scanners with today’s most innovative
features to perform laser scanning in both indoor and outdoor environments – truly mobile, fast and reliable. Like the latestdevices from the Focus X series they support High Dynamic Range (HDR) photo recording.

What are the functions of HDR?

The HDR laser scanner models record HDR imagery. HDR means high dynamic range and is a technique to capture images with multiple exposure rates and merging them into a single HDR image layer. This HDR image provides additional details in dark or bright areas, which would have been lost in a standard image. These HDR images will be mapped onto the point cloud data generated by the laser scanner.

Main benefits:

  • Reliable life-like visualization, even under extreme lighting conditions and large distance
  • Safe and fast as-built data capturing with superior colour detail
  • Reduced complexity by integrated scanning and imaging workflow for all kinds of scanning tasks

FARO FOCUS LASER SCANNER PERFORMANCE SPECIFICATIONS

  FARO FocusS Plus 350 FARO FocusS Plus 150 FARO FocusS 350 FARO FocusS 150 FARO FocusS 70 FARO FocuS M70

Ranging Unit

Unambiguity Interval 614m for up to 0.5 mil pts/sec
307m at 1 mil pts/sec
153m at 2 mil pts/sec
614m for up to 0.5 mil pts/sec
307m at 1 mil pts/sec
614m for up to
0.5 mil pts/sec
Range
90% Reflectivity (white) 0.6-350m 0.6-150m 0.6-350m 0.6-150m 0.6-70m 0.6-70m
10% Reflectivity (dark-gray) 0.6-150m 0.6-150m 0.6-150m 0.6-150m 0.6-70m 0.6-70m
2% Reflectivity (black) 0.6-50m 0.6-50m 0.6-50m 0.6-50m 0.6-50m 0.6-750m
Range Noise
@10m 90% (white) 0.1 0.3 0.7
@10m 10% (dark-gray) 0.3 0.4 0.8
@10m 2% (black) 0.9 1.3 1.5
@25m 90% (white) 0.2 0.3 0.7
@25m 10% (dark-gray 0.5 0.5 0.8
@25m 2% (black) 1.6 2.0 2.1
Max. Measurement Speed (mil. pts/sec) Up to 2   Up to 1     Up to 0.5
Ranging Error³ (mm) ±1 ±3
Angular Accuracy? 19 arcsec for vertical/horizontal angles not specified
3D Point Accuracy 2 @10m 3.5 @25m 2 @10m 3.5 @25m not specified



ADDITIONAL PERFORMANCE SPECIFICATIONS

Color Unit

Color Resolution Up to 165-megapixel color
HDR Camera Exposure bracketing 2x, 3x, 5x
Parralax Minimized due to co-axial design

Deflection Unit

Field of View 300°vertical? / 360° horizontal
Step Size 0.009 (40,960 3D-pixel on 360°)
vertical / 0.009 (40,960 3D-pixel
on 360°) horizontal
Max. Scan Speed 97Hz (vertical)

Laser (Optical Transmitter)

Laser Class Laser Class 1
Wavelength 1550nm
Beam Divergence 0.3mrad (1/e)
Beam Diameter at Exit 2.12mm (1/e)

Data Handling and Control)

Data Storage SDHC, SDXC, 32GB; max. 512GB card
Scanner Control Via touch screen display and WLAN connection, Access by mobile devices with HTML5
Interface Connection
WLAN 802.11n (150Mbit/s), as access point or client in existing networks



ADDITIONAL FEATURES

Dual Axis Compensator Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2
Height Sensor Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan
Compass The electronic compass gives the scan an orientation
GNSS Integrated GPS & GLONASS
On-Site Compensation Creates current quality report and improves compensation automatically
Accessory Bay* The accessory bay connects versatile accessories to the scanner
Inverse Mounting Yes
Real-time, On-site Registration in SCENE Connects to SCENE, real-time scan processing and registration, overview map
Electronic Automation Interface Available as option, only at point of sale
Digital Hash Function Scans are cryptographically hashed and signed by the scanner
Rescanning of Distant Targets Defined areas recaptured in higher resolution at a greater distance
Retake Photos Select individual photographs with unwanted objects and retake them



GENERAL SPECIFICATIONS

Power Supply 19V (external supply), 14.4V (internal battery)
Power Consumption 15W idle, 25W scanning, 80W charging
Battery Service Life 4.5 hours
Temperature Operating: 5° - 40° C | Extended Operating?: -20° - 55° C | Storage: -10°- 60°C
Ingress Protection (IP) Rating Class IP54
Humidity Resistance Non-condensing
Weight 4.2 kg (including battery)
Size/Dimensions 230 x 183 x 103mm
Maintenance / Calibration Recommended annua



Faro SCENE SOFTWARE

SCENE is specifcally designed for all FARO laser scanners. The software processes and manages scanned data both effciently and easily by using the automatic object recognition and scan registration. SCENE is an extremely user-friendly software that allows scans to be automatically combined. The resulting point cloud can be viewed in three dimensions. All the scans are available in color and as high-contrast intensity images.

  • Automated target-less scan registration
  • SCENE WebShare Cloud integration
  • Super-crisp visualisation
  • Easy processing of large scan projects
  • Plug-Ins for extended functionality
  • Homogenisation of point clouds

Software Options: The FARO Laser Scanner and the SCENE software are compatible with the most common CAD software applications and can be used to export scan data to over 50 common software solutions
