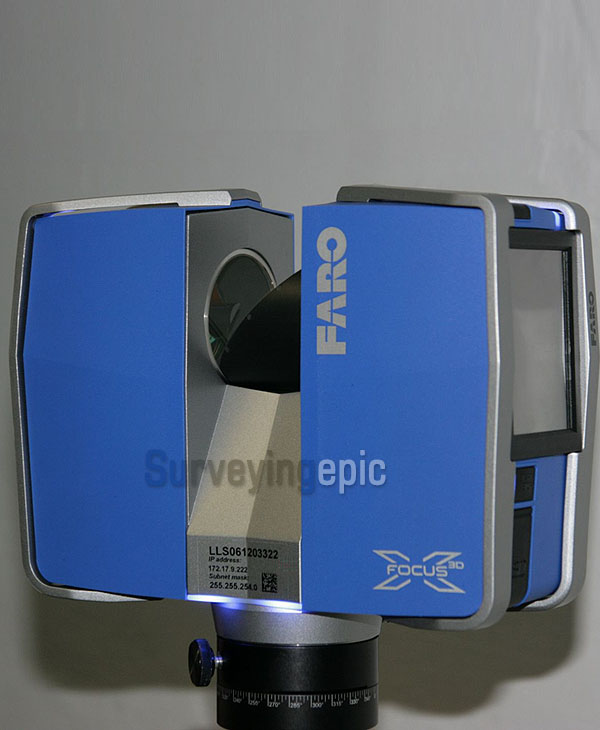

FARO Focus 3D Scanner X330 in mint condition

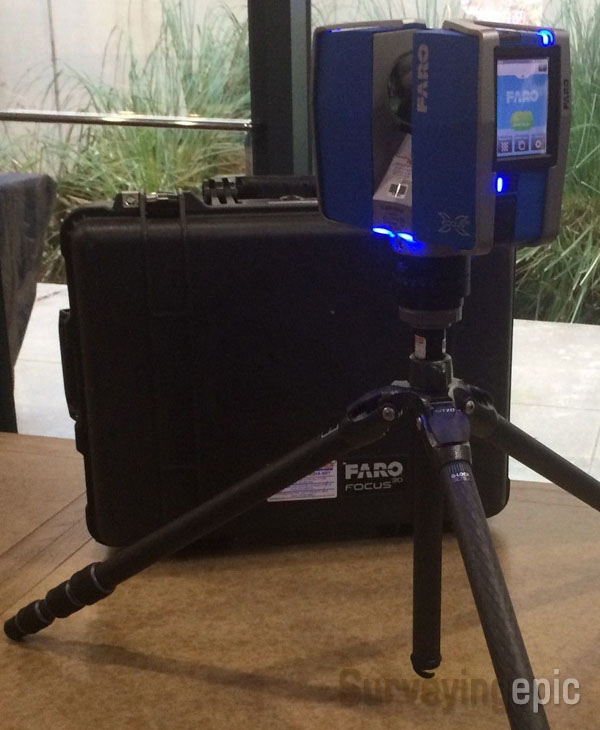

FARO Focus X330 for sale with GITZO Carbon Tripod Mountaineer Kit + Extra Faro Power Battery Block, FARO Scene license. Been serviced and calibrated by FARO authorized, ready to scan and work flawlessly

$5,900

Contact Us

FARO Focus X330 for sale with GITZO Carbon Tripod Mountaineer Kit + Extra Faro Power Battery Block, FARO Scene license. Been serviced and calibrated by FARO authorized, set up ready to scan and work flawlessly with FARO working standards

Manufacture: 2014
Condition: Demo Used, Almost Brand New.
Manufacturer Warranty

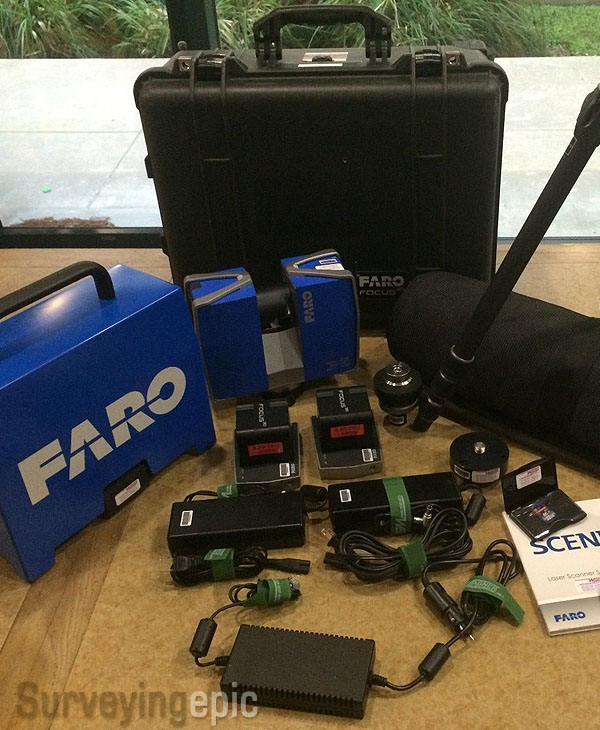

FARO Focus 3D X330 Demo Used Package Includes:
- 1X FaroFocus 3D X330, with compass, altimeter (barometer), dual axis compensator and WLAN

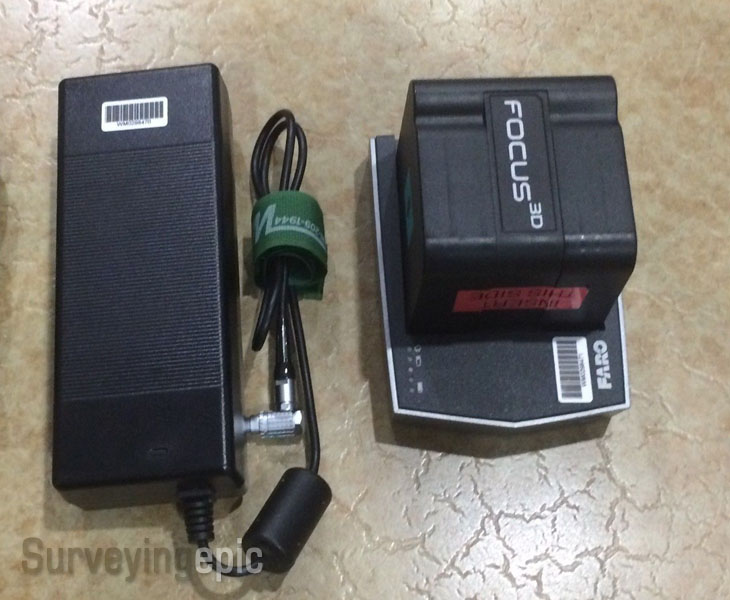

- 1X PowerBlock Li-ion Battery
- 1X Power Dock Charging Cradle
- 1X Quick Charge Power Supply
- 1X 12V/Car Power Supply
- 1X 32GB SD Card
- 1X USB 3.0 SD Card Reader
- 1X SD Card Cover
- 1X Pelican 1610 Rugged Transport Case With Wheels - Custom FARO Foam
- 1X Ruggedized Protection and Transport Cover (blue, in aluminum)
- 1X Panorama Tripod Quick Release
- 1X Optical Cleaning Set
- 1X License SCENE software
- 1X Gitzo GT2543L Mountaineer Series (FREE Gitzo GC3101 padded tripod bag)
- 1X Faro Power Battery Block (EXTRA: Power Block, Charging Cradle, Quick Charge Power Supply Focus 3D)
- 1X Hard Lock (USB Dongle) FARO SCENE single user license, Valid for all current versions of SCENE software.

Faro Focus3D X 330 Features:

  • Extended Scanning: 330M RANGEThe Focus3D X 330 can scan objects up to 330 meters away. Large buildings, land-site exca-vations and vast terrains can be surveyed with fewer scans, thus resulting in quicker project scanning completion
  • Easy positioning - Integrated GPS Receiver: With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications.
  • Outdoor Scanning Capability : Focus3D X 330 is able to perform fast and highly precise scanning in direct sunlight.
  • Low Noise Perfomance: The FARO Focus3D X 330 delivers extraordinary scan data quality at extended range with very low noise.
  • Wireles LAN WAN : Remote control permits you to start, stop, and view scans at a distance.

Faro Focus3D X 330 Technical Spesification

Ranging unit

  • Unambiguity interval: By 122 till 488 Kpts/sec at 614m; by 976 Kpts/sec at 307m
  • Range Focus3D X 330: 0.6m - 330m indoor or outdoor with upright incidence to a 90% reflective surface
  • Measurement speed (pts/sec): 122,000 / 244,000 / 488,000 / 976,000
  • Ranging error1 : ±2mm

Colour unit

  • Resolution: Up to 70 megapixel colour
  • Dynamic colour feature: Automatic adaption of brightness
  • Parallax: Co-axial design

Deflection unit

  • Field of view (vertical/horizontal): 300°/ 360°
  • Step size (vertical/horizontal): 0.009° (40,960 3D-Pixel on 360°) / 0,009° (40.960 3D-Pixel on 360°)
  • Max. vertical scan speed: 5.820rpm or 97Hz

Laser (optical transmitter)

  • Laser class: Laser class 1
  • Wavelength: 1550nm
  • Beam divergence: Typical 0.19mrad (0,011°) (1/e, halfangle)
  • Beam diameter at exit: Typical 2.25mm (1/e)

Data handling and control

  • Data storage: SD, SDHC™, SDXC™; 32GB card included
  • Scanner control: Via touchscreen display and WLAN
  • New WLAN access: Remote control, scan visualisation are possible on mobile devices with Flash®

Multi-Sensor

  • Dual axis compensator: Levels each scan: Accuracy 0.015°; Range ± 5°
  • Height sensor: Via an electronic barometer the height relative to a fixed point can be detected and added to a scan.
  • Compass4: The electronic compass gives the scan an orientation. A calibration feature is included.
  • GPS: Integrated GPS receiver

General

  • Power supply voltage: 19V (external supply), 14.4V (internal battery)
  • Power consumption: 40W and 80W (while battery charges)
  • Battery life: 4.5 hours
  • Ambient temperature: 5° - 40°C
  • Humidity: Non-condensing
  • Cable connector: Located in scanner mount
  • Weight: 5.2kg
  • Size: 240 x 200 x 100mm
  • Maintenance / calibration: Annual
