FARO Focus 3D S120 Laser Scanner

Selling Used FARO Focus 3D S120 Laser Scanner with GITZO carbon tripod and 2 Starter Kit III, scene software version 5.1

$5,300

Contact Us

FARO Focus 3D S120 Laser Scanner with GITZO carbon fibre tripod and 2 Starter Kit III
comes with Faro scene software version 5.1. including Hard Lock Dongle, personal used.

manufacture: 2011
Condition: Lightly Used, like new condition
Just used in three projects with approximately time: 30 hours Total.
Fresh Calibration calibration and re-certification by FARO.

FARO Focus 3D S120 Laser Scanner Includes:
- 1X Focus-3D S120, with Compass, Altimeter (Barometer), Dual-­Axis Compensator and WLAN

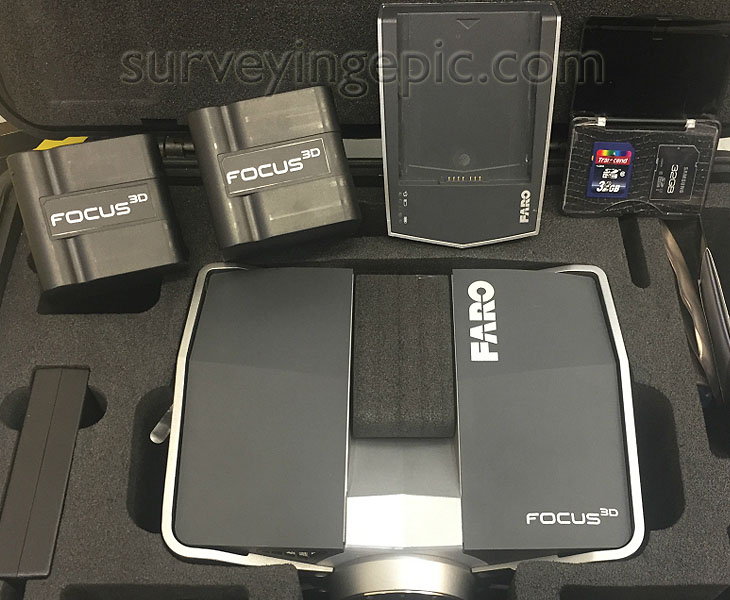

- 2X PowerBlock Batteries
- 1X Charging Cradle
- 1X Power Supply
- 1X Laser Protection Goggle
- 2X 32GB SD card

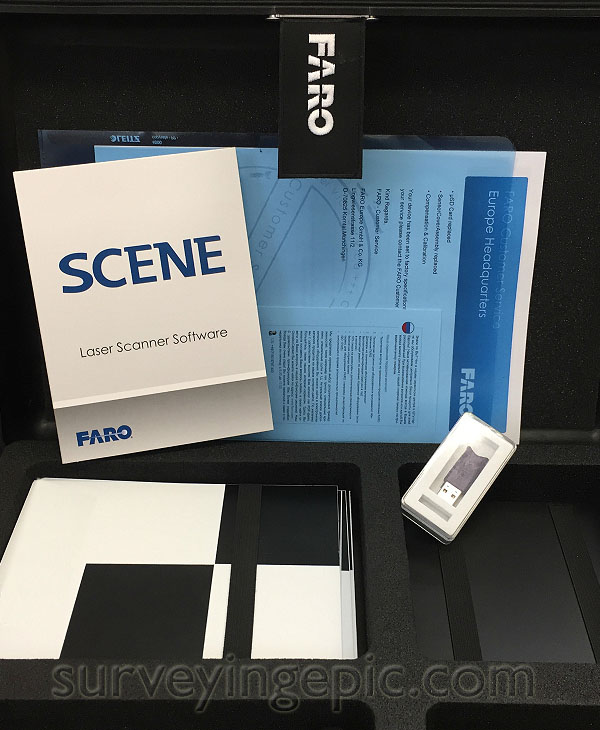

- 1X FARO Scene 5.1 include Hard Lock Dongle
- 1X SD Card Reader
- 1X SD Card Cover

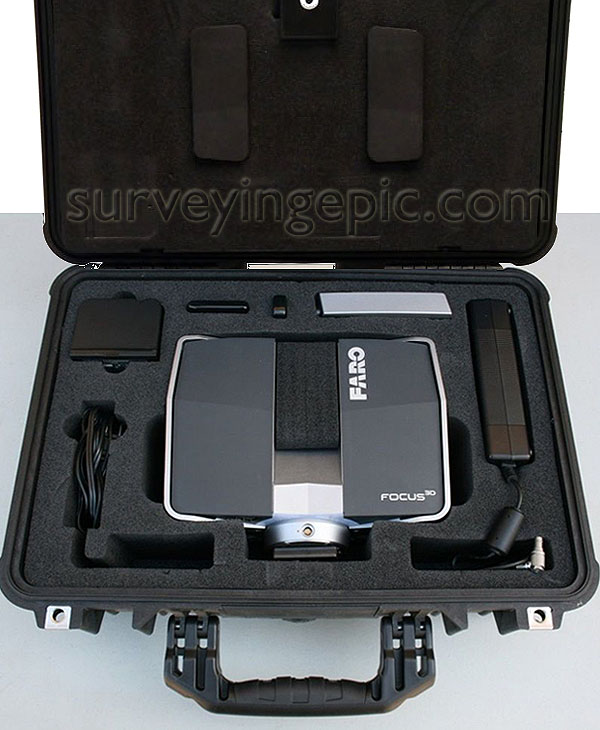

- 1X Rugged Transport Case

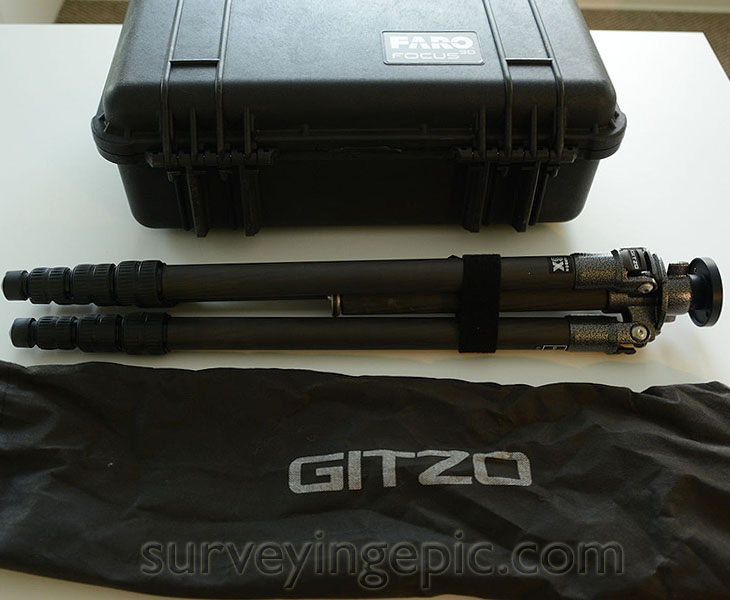

- 1X GITZO Carbon Fibre Tripod with Carry Bag

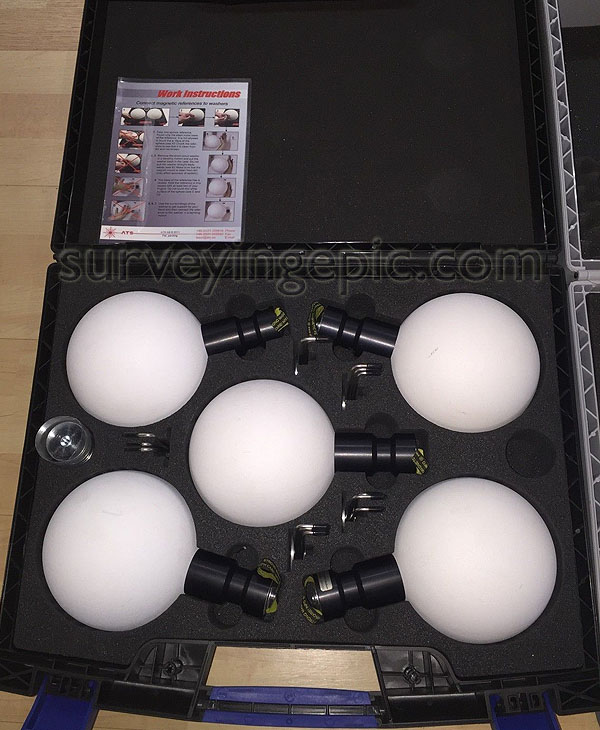

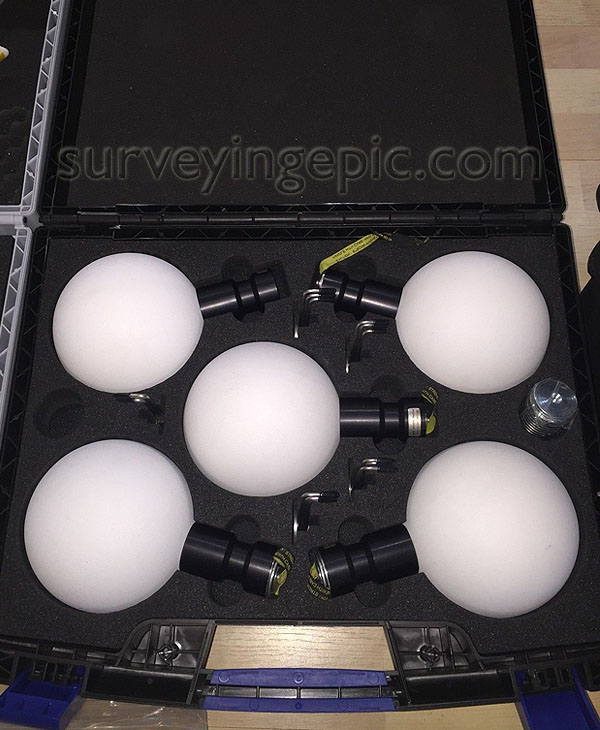

- 2X Laser Scanner Starter Kit III (10 Reference Spheres including Magnets, Magnetic Tripods & 10 Precision Washers, 2 transport cases)

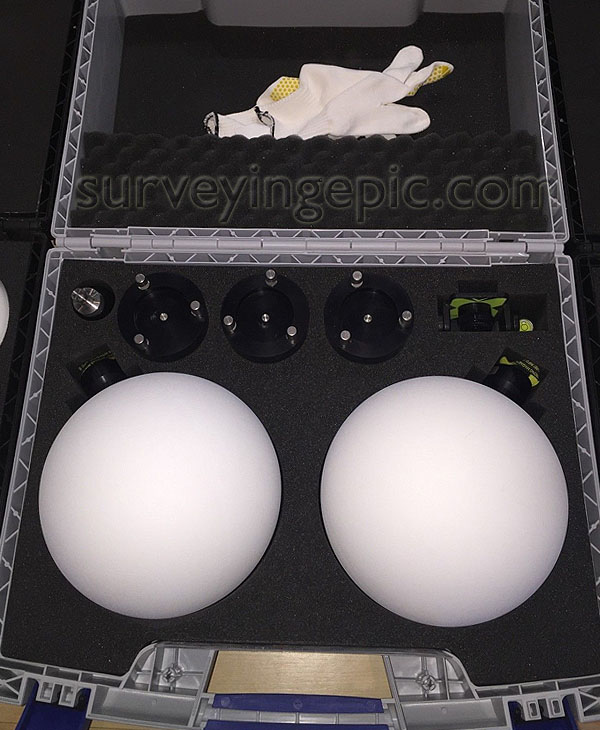

- 1X Super Sphere Kit
- 1X  Tribrach Adapter

FARO Focus 3D S120 Features:

  • Intuitive touchscreen display: Control all scanner functions with a touch interface for unparalleled ease of use and control
  • Small and compact: With a size of only 9.5 x 8 x 4in and a weight of just 11lbs, the Focus3D is the smallest 3D scanner ever built
  • Integrated color camera: Photorealistic 3D color scans due to an integrated color camera featuring an automatic 70 megapixels parallax-free color overlay
  • High-performance battery: Integrated lithium-ion battery provides up to fve hours of battery life and can be charged during operation
  • Data management: All data is stored on a SD card enabling easy and secure transfer to a PC. Using SCENE WebShare, images can be shared on the internet
  • Compass: An electronic compass is now included within the unit to associate directional data to your scans and facilitate the auto-registration process
  • Height Sensor (Altimeter): Each scan now includes height information which can be used to scan different foor levels in a building. The data can then be used to differentiate the ?oors
  • Dual Axis Compensator: To minimize the number of targets needed, the dual axis compensator enables every scan to have integrated level information
  • WLAN (WiFi): WLAN remote control permits you to start, stop, view or download scans at a distance

FARO Focus 3D S120 Perfomance Spesification

Ranging Unit

  • Unambiguity interval: 153.49m (503.58ft)
  • Range Focus3D 1201: 0.6m - 120m indoor or outdoor with low ambient light and normal incidence to a 90% re?ective surface
  • Range Focus3D 20: 0.6m - 20m at normal incidence on >10% matte re?ective surface*
  • Measurement speed: 122,000 / 244,000 / 488,000 / 976,000 points/sec
  • Ranging error2: ±2mm

Color Unit

  • Resolution: Up to 70 megapixel color
  • Dynamic color feature: Automatic adaption of brightness

Detection unit

  • Vertical feld of view (vertical/horizontal): 305° / 360°
  • Step size (vertical/horizontal): 0.009° (40,960 3D pixels on 360°) / 0.009° (40,960 3D pixels on 360°)
  • Max. vertical scan speed: 5,820rpm or 97Hz

Laser (Optical transmitter)

  • Laser power (cw Ø): 20mW (Laser class 3R)
  • Wavelength: 905nm
  • Beam divergence: Typical 0.19mrad (0.011°)
  • Beam diameter at exit: 3.0mm, circular

Data handling and control

  • Data storage: SD, SDHC™, SDXC™; 32GB card included
  • Scanner control: Via touch-screen display
  • New WiFi(WLAN) access: Remote control, Scan Visualization and download are possible on mobile devices with Flash®

Multi-Sensor

  • Dual axis compensator: Levels each scan with an accuracy of 0.015° and a range of ±5°
  • Height sensor: Detects the height relative to a fxed point via an electronic barometer and adds it to the scan
  • Compass: Electronic compass gives the scan an orientation. A calibration feature is included

Hardware Spesification

  • Power supply voltage: 19V (external supply), 14.4V (internal battery) Cable connector: Located in scanner mount
  • Power consumption: 40W and 80W respectively (while battery charges) Weight: 5.0kg
  • Battery life: Up to 5 hours Size: 240x200x100mm3
  • Ambient temperature: 5° - 40°C Maintenance calibration: Annual
  • Humidity: Non-condensing Parallax-free: Yes
