FARO FOCUS S150 in mint condition

Selling Used Faro Focus S150 Scanner, 1-Year Manufacturer Warranty, License FARO SCENE Software and Maintenance Contract

$11,400

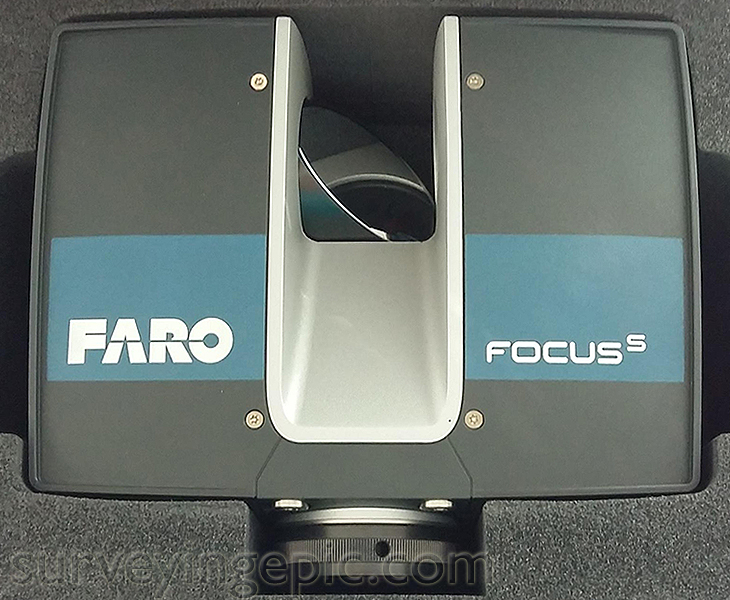

FARO Focus S-150 Laser scanner in mint condition with Carbon Tripod

manufacture: 2018

Condition: in mint condition like new only 12 months old.
calibration and Warranty until February 2021
This unit was just calibrated on 02/2020, latest firmware version installed.

Focus-S 150 Features:
Range: 0.6 - 150m
High Dynamic Range (HDR) Photo Recording 2x/3x/5x
Measurement Speed: up to 976,000 points/second
Ranging Error: ± 1mm
Sealed Design - Ingress Protection (IP) Rating Class 54
On-site Compensation
Accessory Bay
Angular Accuracy: 19 arc sec for vertical/horizontal angles
Integrated Colour Camera: Up to 165 mio. pixel
Laser Class: Laser class 1
Weight: 4.2kg
Multi-Sensor: GPS, Compass, Height Sensor, Dual Axis Compensator
Size: 230 x 183 x 103mm
Scanner Control: via Touch Screen Display and WLAN

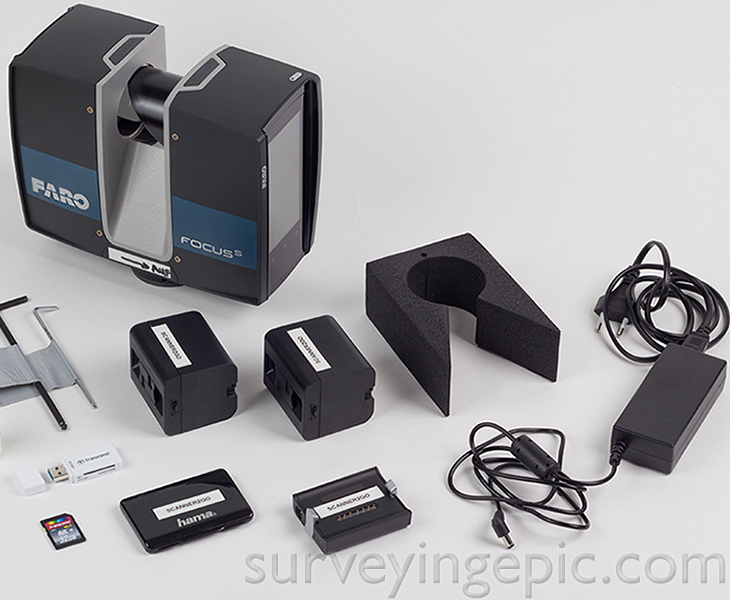

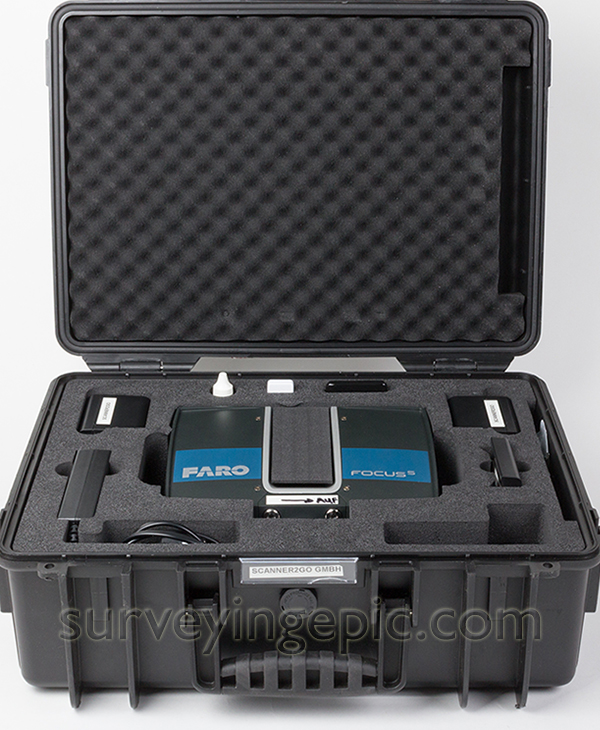

Includes:

FARO FocusS 150 Scanner
2x Battery
Charger and power adapter
32GB SD card
USB3 card reader
Cleaning fluid and paper towels
2x Allen key
Quick release and carbon tripod extra long series.
License SCENE Software and Maintenance Contract

Total weight: 10 KG

FARO LASER SCANNER FOCUS S150 | THE WORLD'S MOST POPULAR TERRESTRIAL LASER SCANNER WITH ULTRA-HIGH ACCURACY AND INGRESS PROTECTION

The ultra-portable FocusS 150 enables fast, straightforward and ultra-high accurate measurements of objects and buildings. It records architectural façades, complex structures, production and supply facilities, accident sites, and large-volume components delivering realistic and true-to-detail scan results with a range of 150m per scan. This Faro FocusS 150 laser scanner enable to capture fast, straightforward and accurate measurements of complex objects and buildings. The intuitive touch-screen of the FocusS models has been increased in size and clarity to deliver an extraordinary user experience. A built-in 8 mega-pixel, HDR-camera captures detailed imagery easily while providing a natural color overlay to the scan data in extreme lighting conditions. Familiar traits such as light weight, small size and a 4.5-hour battery runtime per charge makes the FocusSLaser Scanner truly mobile for fast, secure and reliable scanning.

The FocusS 150 is a mid-range device offering precise scanning up to 150m. With their sealed design, both models are certified via the industry standard Ingress Protection (IP) Rating, and classified in Class 54 for environmental protection. The devices are built to safeguard against intrusions such as dirt, dust, fog and rain as well as other outdoor elements which typically occur in challenging scanning conditions. An addtion the two laser scanners offer a future-proof interface to connect additional accessories to the scanner and provide a specific on-site compensation routine.

Remote scanning as well as almost limitless scan data sharing via SCENE Webshare Cloud make the laser scanning solution truly mobile.

Features of the new FocusS Laser Scanner

The most recent FocusS series combines all benefits from FARO’s well-known Focus3D Laser Scanners with today’s most innovative
features to perform laser scanning in both indoor and outdoor environments – truly mobile, fast and reliable. Like the latestdevices from the Focus X series they support High Dynamic Range (HDR) photo recording.

What are the functions of HDR?

The HDR laser scanner models record HDR imagery. HDR means high dynamic range and is a technique to capture images with multiple exposure rates and merging them into a single HDR image layer. This HDR image provides additional details in dark or bright areas, which would have been lost in a standard image. These HDR images will be mapped onto the point cloud data generated by the laser scanner.

Main benefits:

Reliable life-like visualization, even under extreme lighting conditions and large distance
Safe and fast as-built data capturing with superior colour detail
Reduced complexity by integrated scanning and imaging workflow for all kinds of scanning tasks

FARO FOCUS LASER SCANNER PERFORMANCE SPECIFICATIONS

	FARO FocusS Plus 350	FARO FocusS Plus 150	FARO FocusS 350	FARO FocusS 150	FARO FocusS 70	FARO FocuS M70
Ranging Unit
Unambiguity Interval	614m for up to 0.5 mil pts/sec 307m at 1 mil pts/sec 153m at 2 mil pts/sec		614m for up to 0.5 mil pts/sec 307m at 1 mil pts/sec			614m for up to 0.5 mil pts/sec
Range
90% Reflectivity (white)	0.6-350m	0.6-150m	0.6-350m	0.6-150m	0.6-70m	0.6-70m
10% Reflectivity (dark-gray)	0.6-150m	0.6-150m	0.6-150m	0.6-150m	0.6-70m	0.6-70m
2% Reflectivity (black)	0.6-50m	0.6-50m	0.6-50m	0.6-50m	0.6-50m	0.6-750m
Range Noise
@10m 90% (white)	0.1		0.3			0.7
@10m 10% (dark-gray)	0.3		0.4			0.8
@10m 2% (black)	0.9		1.3			1.5
@25m 90% (white)	0.2		0.3			0.7
@25m 10% (dark-gray	0.5		0.5			0.8
@25m 2% (black)	1.6		2.0			2.1
Max. Measurement Speed (mil. pts/sec)	Up to 2		Up to 1			Up to 0.5
Ranging Error³ (mm)	±1					±3
Angular Accuracy?	19 arcsec for vertical/horizontal angles					not specified
3D Point Accuracy	2 @10m 3.5 @25m		2 @10m 3.5 @25m			not specified

ADDITIONAL PERFORMANCE SPECIFICATIONS
Color Unit
Color Resolution	Up to 165-megapixel color
HDR Camera	Exposure bracketing 2x, 3x, 5x
Parralax	Minimized due to co-axial design
Deflection Unit
Field of View	300°vertical? / 360° horizontal
Step Size	0.009 (40,960 3D-pixel on 360°) vertical / 0.009 (40,960 3D-pixel on 360°) horizontal
Max. Scan Speed	97Hz (vertical)
Laser (Optical Transmitter)
Laser Class	Laser Class 1
Wavelength	1550nm
Beam Divergence	0.3mrad (1/e)
Beam Diameter at Exit	2.12mm (1/e)
Data Handling and Control)
Data Storage	SDHC, SDXC, 32GB; max. 512GB card
Scanner Control	Via touch screen display and WLAN connection, Access by mobile devices with HTML5
Interface Connection
WLAN	802.11n (150Mbit/s), as access point or client in existing networks

ADDITIONAL FEATURES
Dual Axis Compensator	Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2
Height Sensor	Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan
Compass	The electronic compass gives the scan an orientation
GNSS	Integrated GPS & GLONASS
On-Site Compensation	Creates current quality report and improves compensation automatically
Accessory Bay*	The accessory bay connects versatile accessories to the scanner
Inverse Mounting	Yes
Real-time, On-site Registration in SCENE	Connects to SCENE, real-time scan processing and registration, overview map
Electronic Automation Interface	Available as option, only at point of sale
Digital Hash Function	Scans are cryptographically hashed and signed by the scanner
Rescanning of Distant Targets	Defined areas recaptured in higher resolution at a greater distance
Retake Photos	Select individual photographs with unwanted objects and retake them

GENERAL SPECIFICATIONS
Power Supply	19V (external supply), 14.4V (internal battery)
Power Consumption	15W idle, 25W scanning, 80W charging
Battery Service Life	4.5 hours
Temperature	Operating: 5° - 40° C \| Extended Operating?: -20° - 55° C \| Storage: -10°- 60°C
Ingress Protection (IP) Rating Class	IP54
Humidity Resistance	Non-condensing
Weight	4.2 kg (including battery)
Size/Dimensions	230 x 183 x 103mm
Maintenance / Calibration	Recommended annua

Faro SCENE SOFTWARE

SCENE is specifcally designed for all FARO laser scanners. The software processes and manages scanned data both effciently and easily by using the automatic object recognition and scan registration. SCENE is an extremely user-friendly software that allows scans to be automatically combined. The resulting point cloud can be viewed in three dimensions. All the scans are available in color and as high-contrast intensity images.

Automated target-less scan registration
SCENE WebShare Cloud integration
Super-crisp visualisation
Easy processing of large scan projects
Plug-Ins for extended functionality
Homogenisation of point clouds

Software Options: The FARO Laser Scanner and the SCENE software are compatible with the most common CAD software applications and can be used to export scan data to over 50 common software solutions
