FARO Focus M70 Scanner Mint Condition

Selling Used Faro Focus M70 Scanner, 1-Year Manufacturer Warranty, License FARO SCENE Software and Maintenance Contract

$6,600

FARO Focus M70 Scanner, in mint condition, System sold “AS IS”

manufacture: 2018
Condition: Lightly Used, like new condition
Scene Software and license 2019.2, Calibrated and re-certification by FARO.

FARO M70 sale includes:
- FocusM 70 with HDR photography
- Battery Power Block
- Battery Power Dock
- 90W Power Supply
- Optic Cleaning Fluid
- Optic Cleaning Tissues
- 32GB SD Card
- SD Card Reader
- SD Card Cover
- Allen Wrench

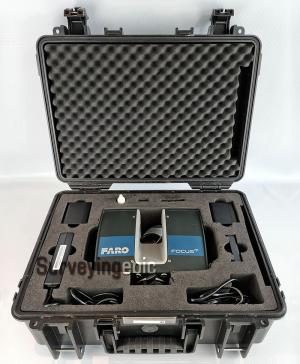

- Rugged Transport Case
- Calibration Certificate
- Quick Start Guide
- Scene Licence

FARO Focus M 70 Laser Scanner

FARO Focus M70 Laser Scanner, short-range professional grade laser scanner, a powerful 3D laser scanner specifically designed for both indoor and outdoor applications that require scanning up to 70 meters. The ultra-portable device enables fast, straight-forward and accurate measurements of small construction sites, small-scale facades, complex structures, production and supply facilities and manageable crime and accident scenes. Combining professional grade scanning technology with authentic mobility and ease-of-use, the new device offers reliability, flexibility, and real-time views of recorded data. The 3D scan data can easily be imported into all commonly used software solutions for architecture and construction, forensics and accident reconstruction or industrial manufacturing.

Features

SHORT-RANGE SCANNING - UP TO 70M: The FocusM 70 can record data up to 70 meters making it ideal for short-range measurements and small area applications
COMPACT AND PORTABLE: The FocusM 70 has the size of only 230 x 183 x 103mm and a weight of just 4.2kg. The device is provided with a waterproof transportation and ergonomic carrying case for true portability
HDR PHOTO OVERLAY: The HDR camera captures detailed imagery easily while providing a natural color overlay to the scan data captured under extreme brightness gradients
BEST VALUE FOR MONEY: The FocusM 70 is a professional grade scanner with the highest return on investment in the market
IP RATING - CLASS 54: With the sealed design, the FocusM 70 is certified with the industry standard Ingress Protection (IP) Rating and classified in class 54 against environmental influences.
TEMPERATURE: Extended temperature range allows scanning in challenging environments - take your Focus M to the desert or run a project in Antarctica

Benefits

Scanning in rough environments while providing protection from dust, debris and water splashes
The Focus M 70 delivers a full scanning workflow at best return on invest in the market
Achieve confidence in scan results by using award winning FARO quality
Maintain familiar workflows through freedom of choice in processing scan data in various software packages
Easily navigate the scanner controls using the large and luminous touch-screen

FARO FOCUS LASER SCANNER PERFORMANCE SPECIFICATIONS

	FARO FocusS Plus 350	FARO FocusS Plus 150	FARO FocusS 350	FARO FocusS 150	FARO FocusS 70	FARO FocuS M70
Ranging Unit
Unambiguity Interval	614m for up to 0.5 mil pts/sec 307m at 1 mil pts/sec 153m at 2 mil pts/sec		614m for up to 0.5 mil pts/sec 307m at 1 mil pts/sec			614m for up to 0.5 mil pts/sec
Range
90% Reflectivity (white)	0.6-350m	0.6-150m	0.6-350m	0.6-150m	0.6-70m	0.6-70m
10% Reflectivity (dark-gray)	0.6-150m	0.6-150m	0.6-150m	0.6-150m	0.6-70m	0.6-70m
2% Reflectivity (black)	0.6-50m	0.6-50m	0.6-50m	0.6-50m	0.6-50m	0.6-750m
Range Noise
@10m 90% (white)	0.1		0.3			0.7
@10m 10% (dark-gray)	0.3		0.4			0.8
@10m 2% (black)	0.9		1.3			1.5
@25m 90% (white)	0.2		0.3			0.7
@25m 10% (dark-gray	0.5		0.5			0.8
@25m 2% (black)	1.6		2.0			2.1
Max. Measurement Speed (mil. pts/sec)	Up to 2		Up to 1			Up to 0.5
Ranging Error³ (mm)	±1					±3
Angular Accuracy?	19 arcsec for vertical/horizontal angles					not specified
3D Point Accuracy	2 @10m 3.5 @25m		2 @10m 3.5 @25m			not specified

ADDITIONAL PERFORMANCE SPECIFICATIONS
Color Unit
Color Resolution	Up to 165-megapixel color
HDR Camera	Exposure bracketing 2x, 3x, 5x
Parralax	Minimized due to co-axial design
Deflection Unit
Field of View	300°vertical? / 360° horizontal
Step Size	0.009 (40,960 3D-pixel on 360°) vertical / 0.009 (40,960 3D-pixel on 360°) horizontal
Max. Scan Speed	97Hz (vertical)
Laser (Optical Transmitter)
Laser Class	Laser Class 1
Wavelength	1550nm
Beam Divergence	0.3mrad (1/e)
Beam Diameter at Exit	2.12mm (1/e)
Data Handling and Control)
Data Storage	SDHC, SDXC, 32GB; max. 512GB card
Scanner Control	Via touch screen display and WLAN connection, Access by mobile devices with HTML5
Interface Connection
WLAN	802.11n (150Mbit/s), as access point or client in existing networks

ADDITIONAL FEATURES
Dual Axis Compensator	Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2
Height Sensor	Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan
Compass	The electronic compass gives the scan an orientation
GNSS	Integrated GPS & GLONASS
On-Site Compensation	Creates current quality report and improves compensation automatically
Accessory Bay*	The accessory bay connects versatile accessories to the scanner
Inverse Mounting	Yes
Real-time, On-site Registration in SCENE	Connects to SCENE, real-time scan processing and registration, overview map
Electronic Automation Interface	Available as option, only at point of sale
Digital Hash Function	Scans are cryptographically hashed and signed by the scanner
Rescanning of Distant Targets	Defined areas recaptured in higher resolution at a greater distance
Retake Photos	Select individual photographs with unwanted objects and retake them

GENERAL SPECIFICATIONS
Power Supply	19V (external supply), 14.4V (internal battery)
Power Consumption	15W idle, 25W scanning, 80W charging
Battery Service Life	4.5 hours
Temperature	Operating: 5° - 40° C \| Extended Operating?: -20° - 55° C \| Storage: -10°- 60°C
Ingress Protection (IP) Rating Class	IP54
Humidity Resistance	Non-condensing
Weight	4.2 kg (including battery)
Size/Dimensions	230 x 183 x 103mm
Maintenance / Calibration	Recommended annual

FARO SCENE SOFTWARE

FARO SCENE is specifcally designed for all FARO laser scanners. The software processes and manages scanned data both effciently and easily by using the automatic object recognition and scan registration. SCENE is an extremely user-friendly software that allows scans to be automatically combined. The resulting point cloud can be viewed in three dimensions. All the scans are available in color and as high-contrast intensity images. The FARO Laser Scanner and the SCENE software are compatible with the most common CAD software applications and can be used to export scan data to over 50 common software solutions

Automated target-less scan registration
SCENE WebShare Cloud integration
Super-crisp visualisation
Easy processing of large scan projects
Plug-Ins for extended functionality
Homogenisation of point clouds

Software Options: The FARO Laser Scanner and the SCENE software are compatible with the most common CAD software applications and can be used to export scan data to over 50 common software solutions
