Topcon GT-503 3” Robotic Total Station with FC-5000 Magnet + RC-5A, fully serviced and calibrated by Topcon authorized, this set up ready to survey and works flawlessly.
Lightly used year 2018, in mint condition and everything is in excellent condition. Fully serviced and calibrated by Topcon authorized to maintain accuracy and works flawlessly with Topcon working standards
The Topcon FC-5000 tablet running Magnet software, RC5 Bluetooth Remote Control for faster acquisition and longer communication range.

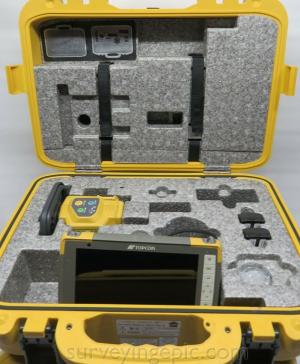

Package includes:

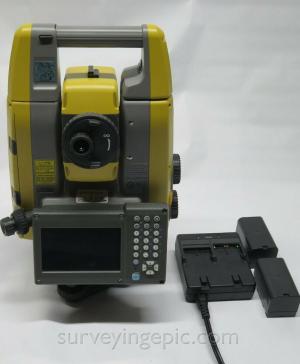

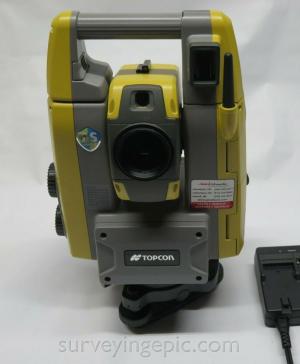

- Topcon GT-503 3” sec Robotic Total Station
- Topcon FC5000 tablet with Magnet software (Total Station, Robotic, GPS) Latest firmware
- Charger
- 2x Batteries
- Topcon RC-5A Remote Control with 2x Batteries
- 2x Hard case
Topcon GT Series robotic total station
The Topcon GT Series robotic total station is the fastest, most powerful total station with the smallest and lightest form factor yet. The source of this speed advancement is found ”underneath the hood” through advanced UltraSonic Motors. These compact and efficient motors transform sound into energy to power both horizontal and vertical rotation – smooth and fast. Plus, the GT offers an industry leading 3 year instrument, 5 year motor warranty.
The GT series of robotic total stations are a trimmed down, high-performance solution that's ready to impress today, yet still grow with you into tomorrow. You get the efficiency of a single-operator robotic system, the power of long range reflectorless measurements, and the ability to perform as a hybrid positioning solution. All in a compact system that’s a third smaller and twice as fast.
UltraSonic technology is the driving force for the GT Series. You can see and hear the difference immediately. The UltraSonic motors are the fastest available in the market - at 180 degrees per second it's the smoothest and most accurate prism-tracking available.
- Ultrasonic Direct Drive motors
- 30% smaller and lighter with more functionality
- TSshield global service
- Advanced UltraTrac technology
Fastest, Most Powerful robotic motor technology
The UltraSonic Direct Drive motors in the GT series are the thinnest, lightest and the fastest available, providing the smoothest, fastest and most accurate prism-tracking possible. This motor has a turning speed of 180 degrees per second making job completion faster than ever! The advanced gearless design is long lasting and backed by an industry leading warranty.
Slim Design, Twice as Fast
30% smaller than our other robotic instruments, this GT Series offers twice the speed. In addition to increasing the speed, the new Ultrasonic motors are free of traditional gears and wearing parts and last four times longer- a great investment.
Ultimate Prism Tracking
Another new technology in the GT Series, UltraTrac, gives increased prism tracking in all situations. If line-of-sight is lost, reacquisition is now faster than ever.
Industry Leading Warranty
When you purchase a GT Series robotic Total Station, rest assured. It comes with the best warranty available in the market. Enjoy a 3-year instrument warranty and a 5-year motor warranty. This commitment shows Topcon stands behind this revolutionary technology.
Topcon GT-503 3” Technical Specifications
- Model: Topcon GT-503 3” Angle Accuracy Robotic Total Station
- Range: 4500m to Single Prism 300m to reflective tape (50mm) 800m Non-Prism mode
- Temperature Range: -20 to 50+ degrees C
- Magnification: 30 x
- Compensator: Liquid 2-axis tilt sensor
- Compensator Accuracy : 1 Second
- IP Ratings : IP65
- Electronic Guide Lights [EGL] : Yes
- Weight Dry : 5.7 kg
- Battery Capacity : Up to 4 hours
- Interfaces : USB DC Power port 3.5mm audio jack
- Imaging Onboard : Controller Only
- Controller Type : FC-5000
- Controller Software : Magnet Field
- Data Storage Options : 64 GB internal memory SD Card USB stick
- Operating System : Windows 10
Topcon FC-5000 FIELD CONTROLLER
The Topcon FC-5000 field computer features a 7 inch display especially designed for viewing in direct sunlight. The display has a capacitive touch interface (finger, glove, small tip stylus and water capable) that is optically bonded to increase visibility. The glass is scratch resistant. With one key press the user can change the orientation of the screen from Portrait to Landscape to increase visibility viewing maps or drawings.
- 7 inch sunlight readable touch display
- Intel® Atom™ Z3745 Processor
- MIL-STD-810G and IP68 certified
- Windows® 10 embedded
- 8 Megapixel rear camera, 2MP front camera
- Optional internal 4G LTE cellular module
