Sokkia iX 502 Robotic Total Station, in full working order, System sold “AS IS”

manufacture: 2018
Condition: Excellent condition, like new.
Calibrated and re-certification.

Sokkia iX 502 Includes:

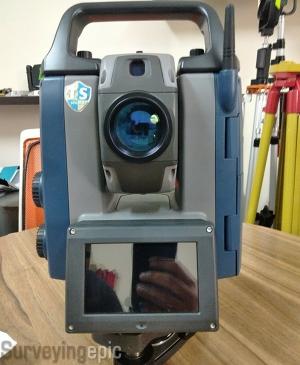

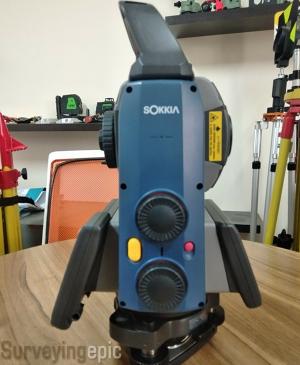

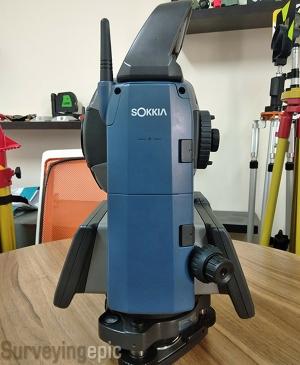

- Sokkia iX 502 Robotic Total Station

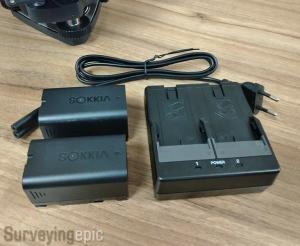

- 2 new batteries
- new charger
- Hard carry case

This unit is without RC handle.

Sokkia iX-500 Series Robotic Total Station is an efficient single-operator robotic system with the power of long-range reflectorless measurements. It can measure distances of up to 13,123 feet (4,000m) when using a prism and up to 1,968 feet (600m) in reflectorless mode. With a rotation speed of 85 degrees per second, this robotic total station provides high- performance solution allowing construction professionals the smoothest and most accurate prism-tracking possible.

Outlined with advanced instrument algorithms, the Sokkia iX-500 series delivers the confidence you need without losing line-of-sight in all prism conditions. Featuring a remarkably slimmed down design, the compact system is a third smaller and lighter than previous robotic instruments, yet twice as fast. Additionally, it has customizable reporting features with intuitive processing within Magnet Office Tools.

This Sokkia robotic total station is has a user-friendly interface with a 4.3-inch color touchscreen display. Without traditional gears or wearing parts, the UltraSonic motors of the iX-500 are much more rugged and durable with an IP65 water-resistant and dustproof rating. Its battery lasts up to four times longer than previous total stations and is backed up by a five-year warranty.

Sokkia iX-500 Series Robotic Total Station is available in 3 different angle accuracies as follows:

  • Sokkia iX-502 2” Second Robotic Total Station
  • Sokkia iX-503 3” Second Robotic Total Station
  • Sokkia iX-505 5” Second Robotic Total Station

General Spesification

Weight 10.58 lbs (4.8 kg)
Warranty 5-year
Protection Class IP65 (dust proof and water jets resistant)

Angle Measurement

Accuracy Choice of 2-second, 3-second or 5-second

Distance Measurement

Unit of Measure (distance display) Selectable: m/ft/in.
EDM Accuracy (Precision) ±2mm + 2 ppm

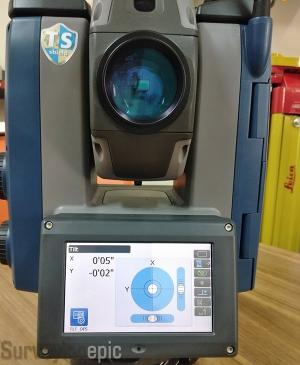

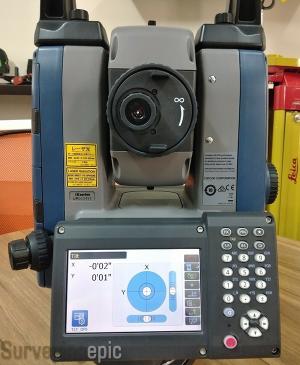

Tilt Sensor/Compensator

Range ±6 feet
Type Liquid 2-axis tilt sensor


Power Source Battery
Battery Life Up to 4 hours
Battery Life Alert Yes

Optical Plummet

Magnification 30x


Magnification 30x
Reflectorless Yes

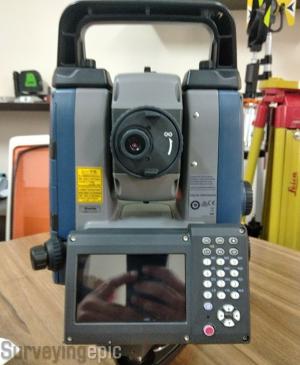

Display and Keypad

Type Color touch LCD
Keys 24 keys with illuminator
Touchscreen Yes
Backlight Yes


Operating -4Fº~122ºF (-20ºC~50ºC)


Surveying and Construction Yes
Mapping and GIS (geographic information systems) Yes
Utilities Yes
Environment Studies Yes
Geomarking Yes
Archaeology Yes
Accident Reconstruction Yes

Measurement Range (under fair weather conditions)

Single Prism 13,123 ft (4,000 m)
No Prism 1,968 ft (600 m)


Coordinate Measurement Point Yes
Angle and Distance Stake Out Yes


Bluetooth Yes
USB 2.0 (Host + Slave)
