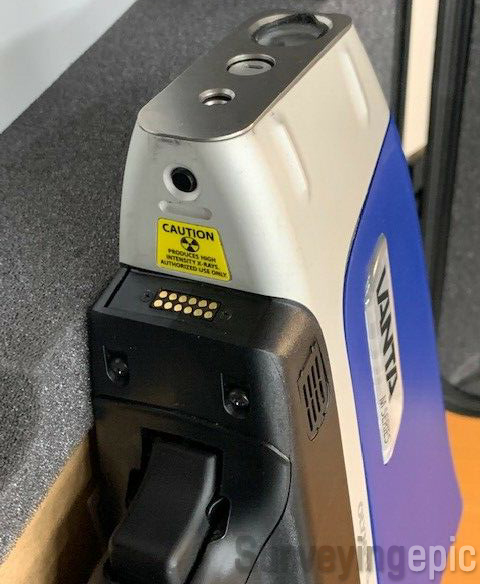

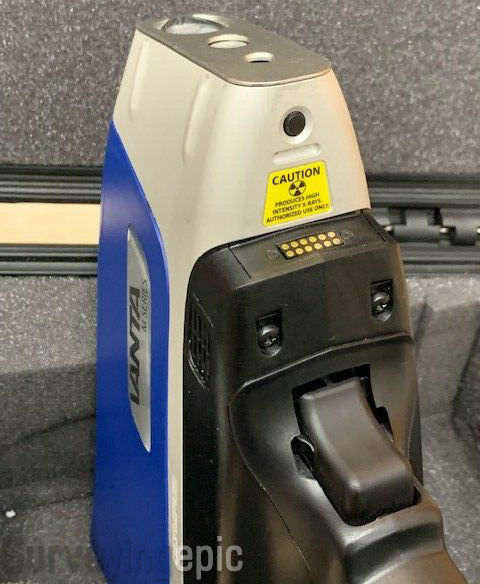

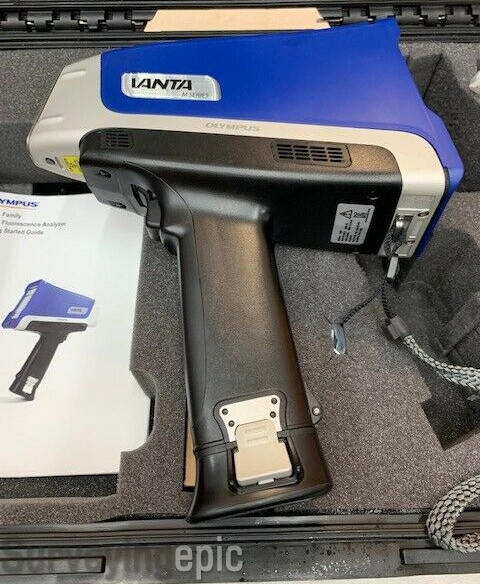

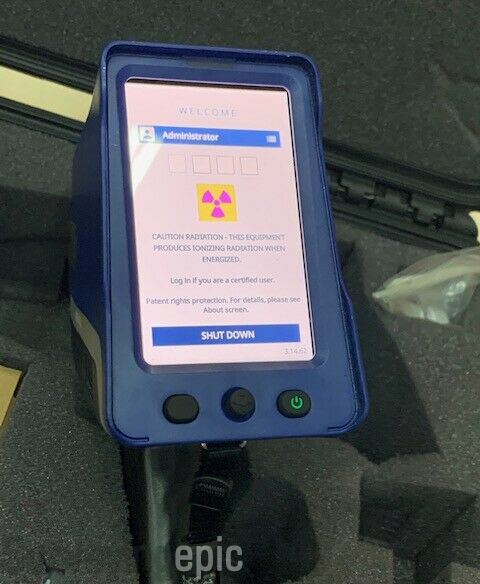

Olympus Vanta M XRF Analyzer
Olympus Vanta M XRF Analyzer
manufacture: 2018
Condition: lightly used, like new condition.
Calibrated and re-certification.

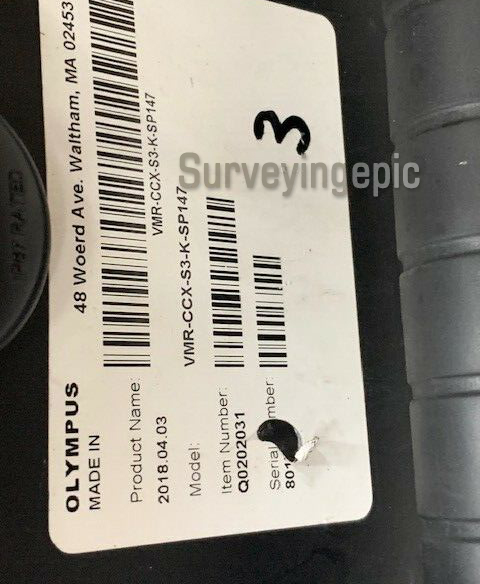

VMR-CCX-S3-K-SP147
Includes;

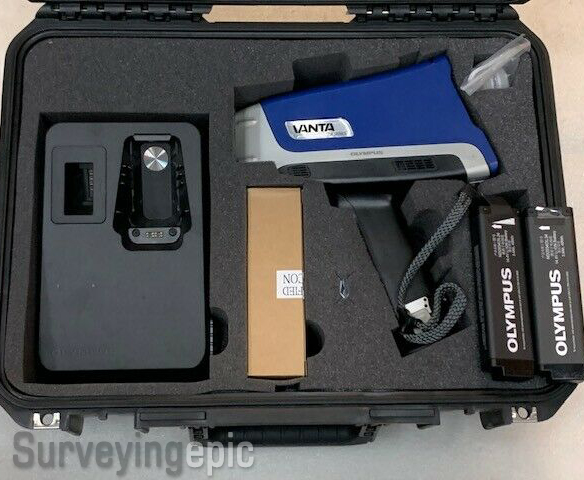

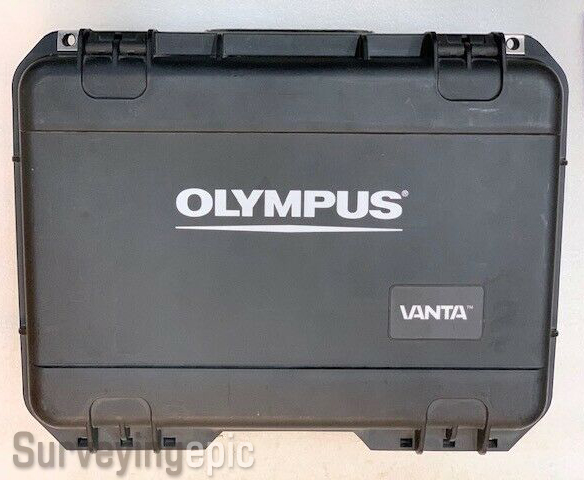

Accessories complete in Carrying case.
The Olympus Vanta M Series XRF Analyzer is an advanced handheld elemental analysis device that surpasses its peers in the Vanta XRF analyzer series with its exceptional performance in applications with the lowest limits of detection, or LODs. Vanta M Series models are equipped with sensitive large-area silicon drift detectors and 50 kV X-ray tubes with a rhodium (Rh) anode. Ideal for scrap sorting, PMI, geochemistry, mining, jewelry ID, soil analysis and an array of other applications, the Vanta M Series adheres to IP65 and MIL-STD 810G standards. Features include SmartSort, which shortens or lengthens test time based on material, and real-time grade matching notifications.
Applications:
- RoHS local/international compliance
- Scan for precious metals - alloy chemistry & karat classification for gold, silver, platinum, rhodium
- Jewelry analysis
- Car catalyst recycling.
- Soil & sediment analysis
- Manufacturing quality control
- Mining grade control & geochemical exploration
Features:
- 4-Watt X-ray tube: Rh, Ag or W
- 8 position auto-selected filter per beam per mode
- GeoChem module included
- SmartSort automatically lengthens/shortens test time based on material
- Grade matching delivers real time messages that translate jargon into trade language
- Compare close grades side by side
- Wireless LAN, Bluetooth, embedded GPS
- 800 x 480 (WVGA) LCD display with customizable user interface
Specifications:
| Dimensions (W x H x D) | 8.3 x 28.9 x 24.2 cm (3.25 x 11.4 x 9.5 in.) |
| Weight | 1.70 kg (3.75 lbs) with battery, 1.48 kg (3.25 lbs) without battery |
| Excitation Source | 4-Watt X-ray tube with application optimized anode material (rhodium (Rh), silver (Ag), or tungsten (W)) M Series (Rh & W) and C Series (Ag): 8-50 kV C Series (Rh & W): 8-40 kV |
| Primary Beam Filtration | 8-position auto selected filter per beam per mode |
| Detector | M Series: Large area Silicon Drift Detector C Series: Silicon Drift Detector |
| Power | Removable 14.4 V Li-Ion battery or 18 V power transformer 100-240 VAC, 50-60 Hz, 70 W max |

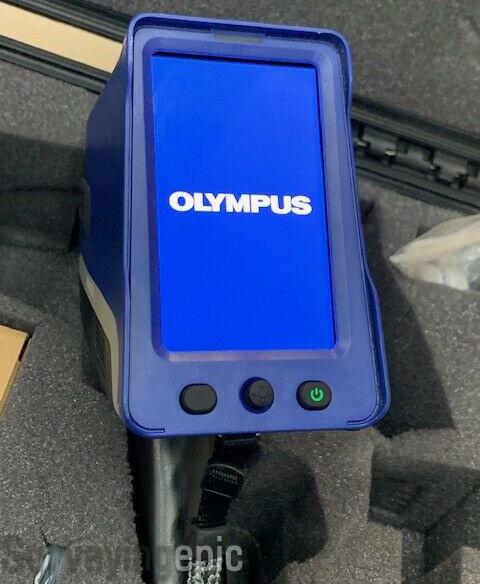

| Display | 800 x 480 (WVGA) LCD with capacitive touch-screen supporting gesture control |
| Operating Environment | Temperature: -10 °C to 50 °C (continuous duty cycle with optional fan) Humidity: 10% to 90% relative humidity non-condensing |
| Drop Test | Military Standard 810-G 4-foot (1.3 M) drop test |
| IP Rating | IP65*: dust tight and protected against water jets from all directions |
| Pressure Correction | Built-in barometer for automatic altitude and air density correction |
| GPS | Embedded GPS/GLONASS receiver |
| Operating System | Linux |
| Data Storage | 4 GB embedded storage, micro SD slot for expandable storage |
| USB | (2) USB 2.0 type A host ports for accessories such as Wireless LAN Bluetooth®, and USB flash drives. (1) USB 2.0 type mini-B port for connection to computer |
| Wireless LAN | Supports 802.11 b/g/n (2.4 GHz) via optional USB adapter |
| Bluetooth | Supports Bluetooth® and Bluetooth Low-Energy via optional USB adapter |
| Aiming Camera | Full VGA CMOS camera |
| Panorama Camera | 5-megapixel CMOS camera with autofocus lens |
