GSSI SIR4000 400mhz Scan Pro GPR
GSSI Utility Scan Pro GPR - SIR4000, 400mhz Antenna. Ground Penetrating Radar for sale.
3 years old, a few cosmetic scratches and marks from field use but other wise in excellent working condition
Rugged, High-Performance GPR Controller
The SIR® 4000 is GSSI’s first high-performance GPR data acquisition system designed to operate with analog and digital antennas. This evolutionary step allows for true versatility and flexibility by supporting a wide range of users across numerous applications.
GSSI SIR4000 sale includes:

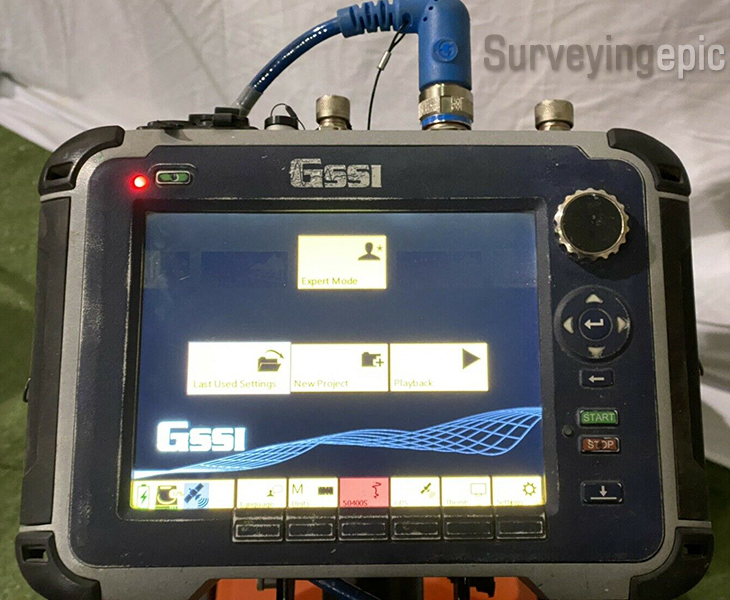

- SIR4000 controller

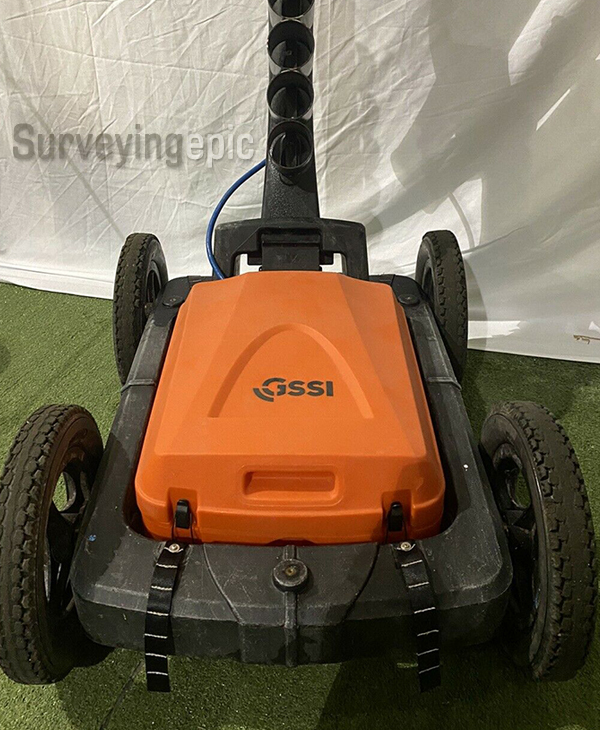

- 400mhz new style “smart” antenna

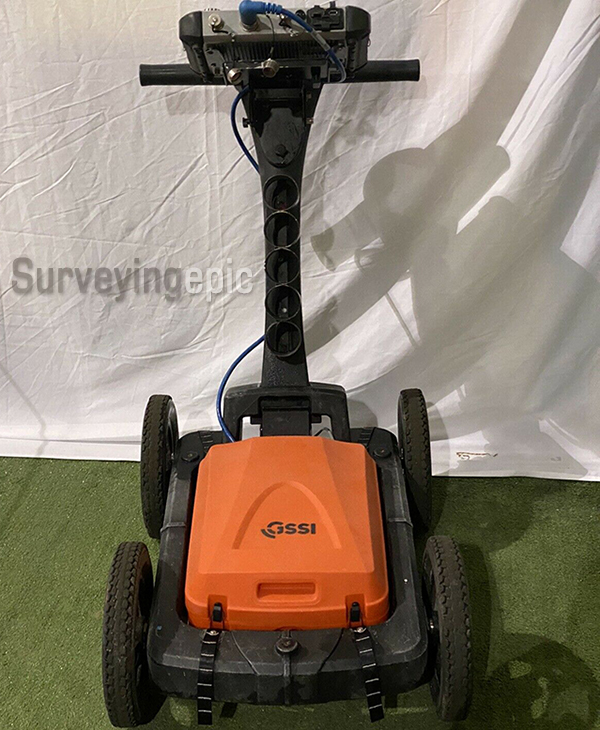

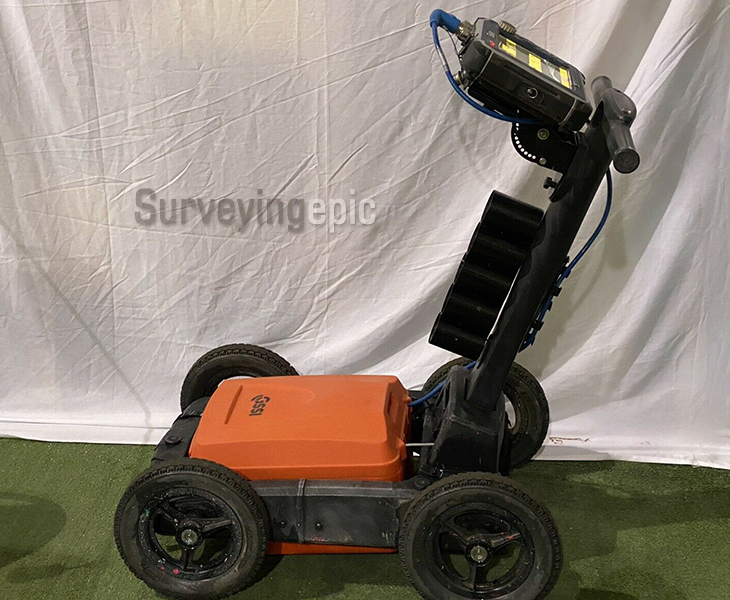

- 4 wheel cart
- brand new skid plate bucket
- includes battery and charger
- includes SIR4000 carry case and sun shield
- includes utility scan pro manual
GSSI UtilityScan Pro, users can quickly identify and mark the position and depth of metallic and non metallic objects; including utilities such as gas, communications and sewer lines as well as underground storage tanks and PVC pipes. Based on the SIR 4000 controller, the UtilityScan Pro provides GPR professional with solutions to any underground locating situation. Typically used for:
- Underground utility detection
- Environmental remediation
- Damage prevention
- Geological investigation
- Archaeology
- Forensics
- Road inspection
GSSI UtilityScan Pro Technical Specifications
| System | SIR 4000 |
| Antennas | Compatible with all GSSI antennas |
| Number of Channels | Records data from 1 single-frequency antenna or 1 dual-frequency antenna |
| Data Storage | 32 GB Flash, 1 GB RAM |
| Display | Enhanced 10.4” LED display with internal high brightness, Active matrix 1024 x 768 resolution and 32-bit color |
| GPS | Data logged internally |
| Display Modes | Linescan, Linescan plus O-scope, Wiggle trace Full 3D, 256 color bins are used to represent the amplitude and polarity of the signal |
| Environmental Rating | IP65 |
| Data Format | RADAN® (dzt) |
| Output Data Format | 32-bit |
| Scan Interval | User-selectable, up to 4000 scans/sec |
| Number of Samples per Scan | 256, 512, 1024, 2048, 4096, 8192, 16384 |
| Operating Modes | Continuous (time) or survey wheel (distance triggered) or point mode |
| Time Range | 0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8 |
| Standard Real-Time Filters | Infinite Impulse Response (IIR) - Low and High Pass, vertical and horizontal - Finite Impulse Response (FIR) - Low and High Pass, vertical and horizontal |
| Advanced Real-Time Filters | Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal |
| Automatic System Setups | Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations |
| Automatic Antenna Recognition | Automatic recognition of Smart Antennas to allow maximum compliant transmit rate |
| Languages | English, Chinese, Japanese, French |
| Operating Temperature | -20°C to 40°C external (-4°F to 104°F) |
| Battery | Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness) |
| Transmit Rate | Up to 800 KHz (International) US/Canada and CE rates depend on antenna model |
| Input/Output | |
| Available Ports | Antenna inputs analog and digital (one at a time), DC power input, Serial RS232 (GPS port), Accessory connector, HDMI video output, Ethernet to PC, USB 2.0 port, mini USB |
| Ethernet | RJ45 100BT Ethernet |
| USB Host | USB host with external keyboard support, USB flash drive support and USB HUB support |
| Mechanical | |
| Dimensions | 14x10x2.75 in (36x25x7 cm) |
| Weight | 10 lbs (4.53 kg) including battery |
| Relative Humidity | <95% non-condensing |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
