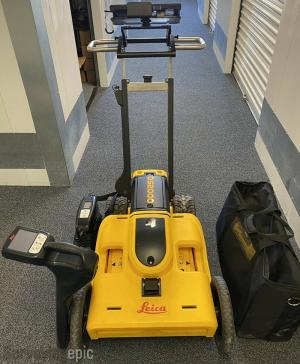

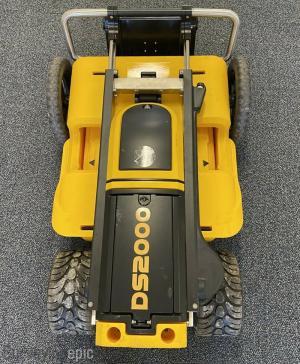

Leica DS2000 GPR with Ultra 12 EM Locator for sale, Lightly used, Fully functional perfectly, Calibrated and Re-certification, ready to working on the field
Condition: Lightly used, Fully functional.
Calibrated and re-certification.
Sale includes;
- Leica DS2000 GPR

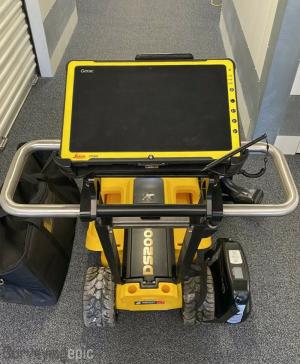

- CT2000G Controller
- Marking spray support
- Battery charger, Battery pack
- Advanced 12 watt transmitter
- System bag
- 5” signal clamp
- Quick guide
- System manual
Leica DS2000 Ground Penetration Radar
The Leica DS2000 Ground Penetration Radar GPR offers a comprehensive detection and underground mapping solution. Easily detects and positions both shallow and deep targets simultaneously, collecting more information, quicker, in any environment. The DS2000 betters your business by making it safer, faster, and more efficient through data collection and export of underground utilities, from storm sewers to fiber optics.
Underground Detection GPR
- Comprehensive detection and underground mapping solution
- Identifies all potential threats for increased safety
- Locate underground utility assets accurately for quick recovery from outages
- Dual-frequency antenna for deep and shallow target detection simultaneously
- Simple and intuitive software for easy data collection and understanding
- Data storage and export capabilities for continued post-processing work
- Advanced ergonomics for easy maneuverability around challenging sites
Integrated Solution for Enhanced Efficiency
When used along with the robust and tough Leica CT2000 field tablet and the Leica iCON GPS smart antenna, the DS2000 is part of the complete detection and underground mapping solution that will enrich your business by making it much more efficient.
Post-Processing and Analysis
The DS2000 is part of the complete Leica Geosystems detection and underground mapping solution. With IQMaps post-processing software, you will be able to perform advanced data analysis and convert radar data to CAD files.
Get Started Today Contact your Leica Geosystems distribution partner for more information on the Leica DS2000 and other detection solutions.
Features for Leica DS2000 4-Wheel Utility Detection Radar
- Four-wheel detector
- Dual-frequency antenna (250 & 700 MHz)
- Detects targets up to a depth of 16 feet
- Perpendicular antenna orientation
- 10 km/Hr acquisition speed
- 2 Hardware channels
- 281 scans per second scan rate per channel
- 42 scans per meter scan interval
- 2 integrated encoders (GPS and/or TPS)
- Ground-penetrating radar
- Best ergonomics
- Rugged wheel
- Foldable system
- Rechargeable Sealed Lead Acid Battery (SLAB)
- Dustproof and water-resistant (IP65)
- Safe, fast, efficient and time-saving
- Various Kit Options
Specifications for Leica DS2000 4-Wheel Utility Detection Radar
|
General
|
| Weight |
52.9 lbs (24 Kg) |
| Protection |
IP65 (”dust tight” and protected against heavy seas or powerful jets of water) |
| Power Consumption/Supply |
13.3 W / Rechargeable SLAB (Sealed Lead Acid Battery) 12 V DC, 12 Ah |
| Operating Temperature Range |
–10° C to +40° C |
| |
|
Frequency Antenna
|
| Antenna Footprint |
15.7 x 19.6 inches (40 x 50 cm) |
| Hardware Channels |
2 |
| Antenna Central Frequencies |
250 MHz |
| Antenna Orientation |
Perpendicular, broadside |
| Sampling Frequency |
400 kHz |
| |
|
Data Acquisition
|
| Acquisition Speed |
More than 10 km/h |
| Scan Rate per Channel |
381 scans per second |
| Scan Interval |
42 scan per meter |
| Positioning |
2 integrated encoders - GPS and/or TPS |
