Trimble Machine Control 3D TD520 with Zephyr 3 Rugged complete

Trimble Machine Control 3D TD520 with Zephyr 3 Rugged complete

$8,300

Contact Us

Trimble Machine Control 3D TD520 with Zephyr 3 Rugged complete
For Excavator, Graders and Dozers

Like new, The set is perfect working condition used very little in the year the pictures on display are real and original received what is displayed
Calibrated and re-certification.

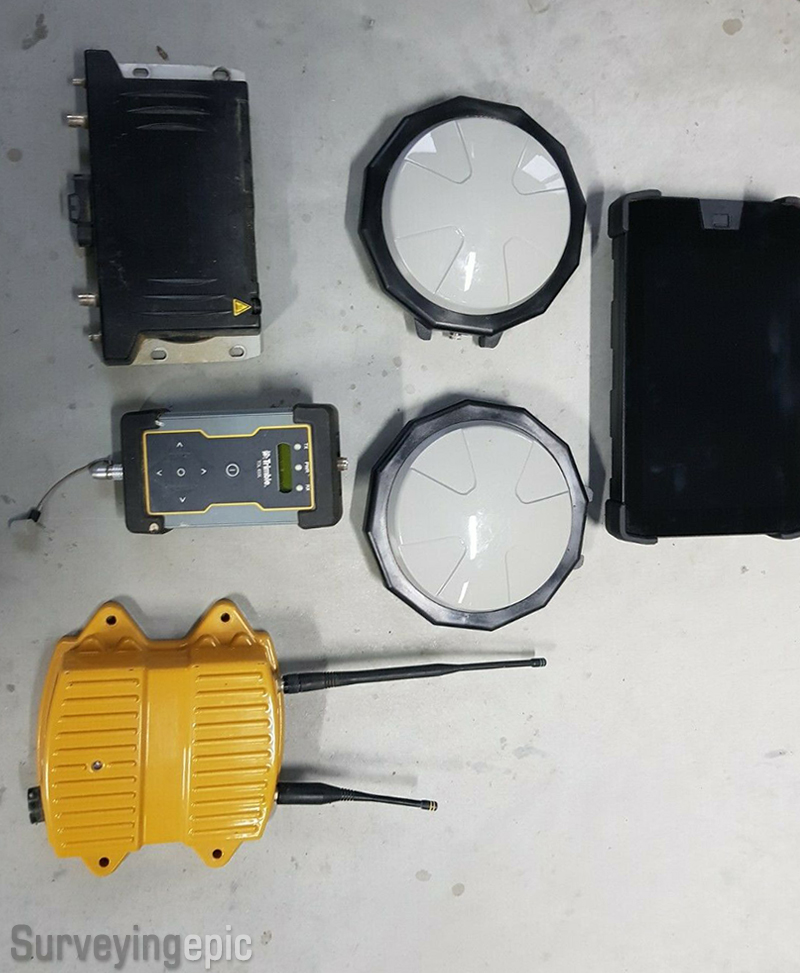

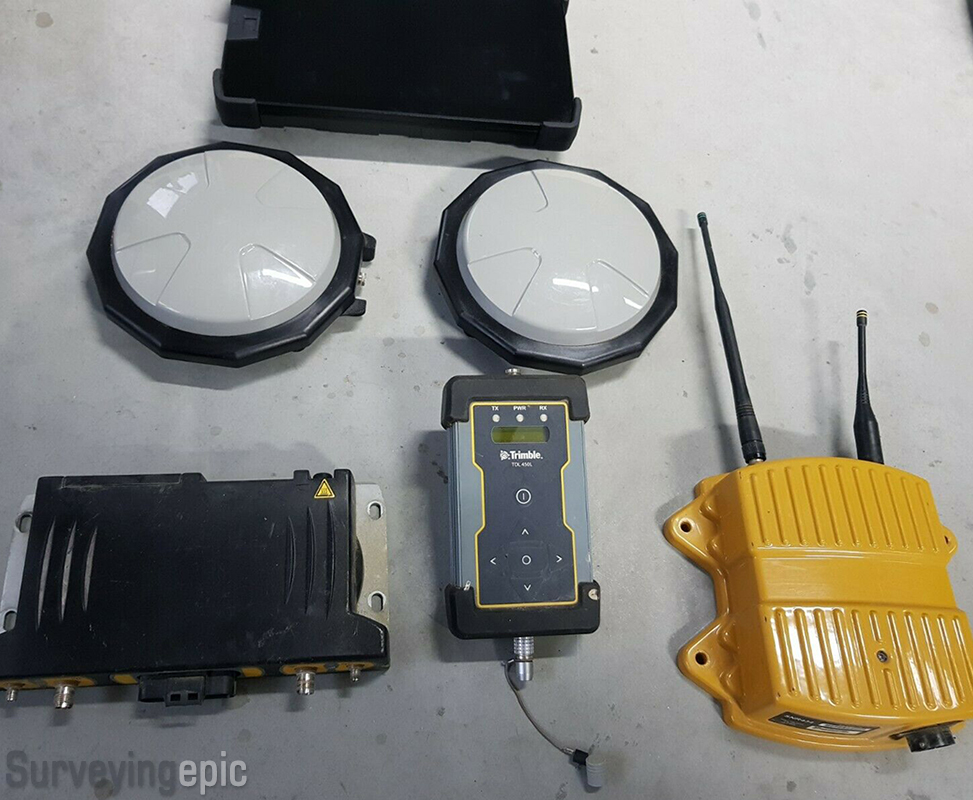

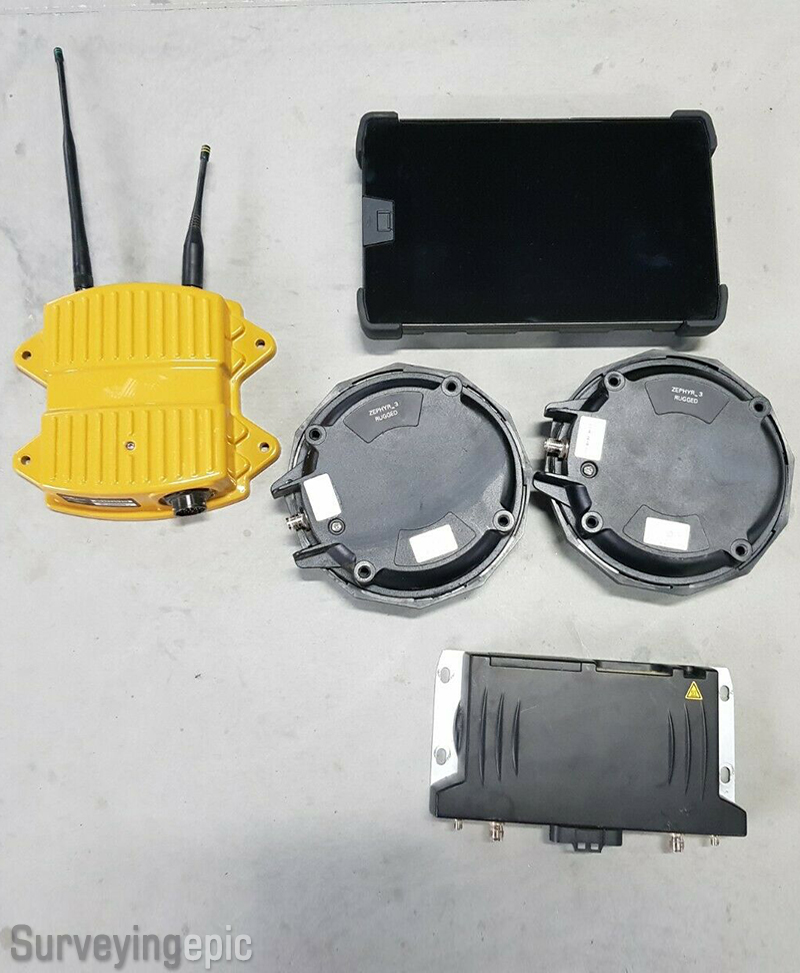

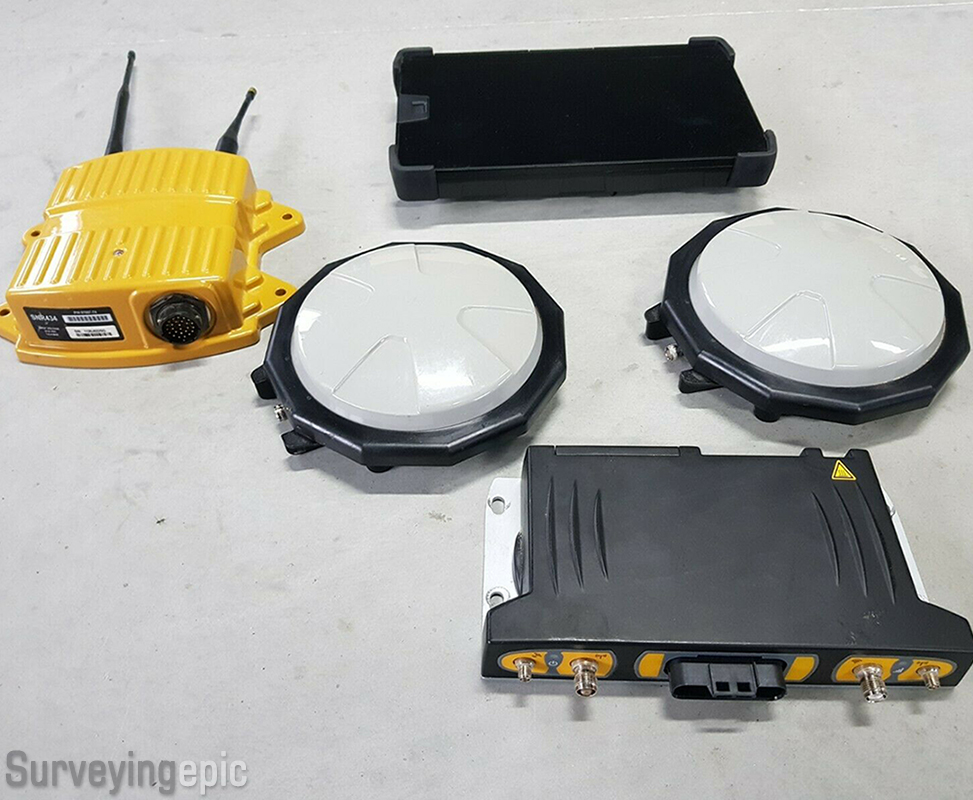

Includes;
- Control Box Trimble TD520-W
- 2 Trimble Zephyr 3 Rugged Antenna
- Radio Trimble SNR 434
- Trimble TDL 450-L 430-470 mhz.

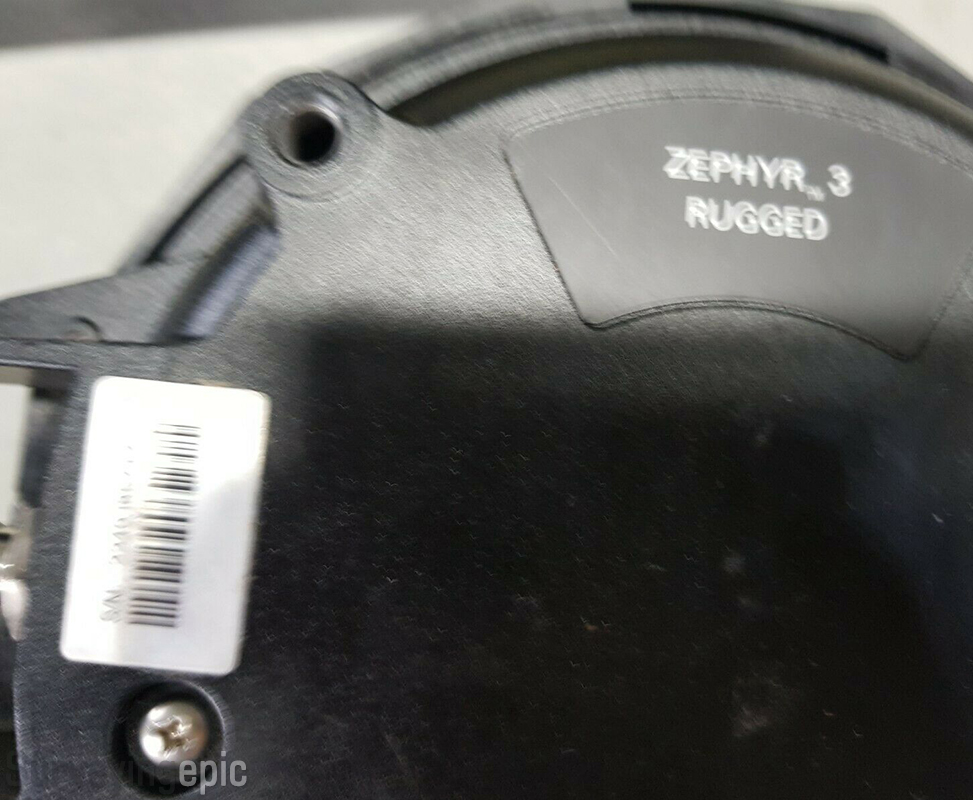

The Zephyr 3 rugged antenna will provide millimeter level accuracy for your position solution and is ideal for use in environments with high vibration and shock.

The Zephyr 3 Rugged antenna uses robust signal tracking and advanced filtering capabilities, and advanced technology for millimeter phase center stability to deliver excellent low elevation satellite tracking and multipath reduction.

The Zephyr 3 Rugged antenna by Trimble is available in two versions – one for thread 3 inch and the other for 5/8 – 11 inch thread mast mounting.

The unit supports both current and future GNSS signals, including OmniSTAR, Trimble RTX, QZSS, IRNSS, SBAS, Galileo, BeiDou, GPS and GLONASS.

The Zephyr 3 rugged antenna has a signal gain of 50 dB for reliable tracking in long cable runs and challenging environments. The advanced LNA (low noise amplifier) reduces interference by high power transmitters that are out-of-band.

Filtering above 1616 MHz enables the antenna to be used close to iridium transmitters (20 m), while the antenna can be placed closer to Japanese LTE cell towers due to extra iridium filtering below 1510 MHz.
