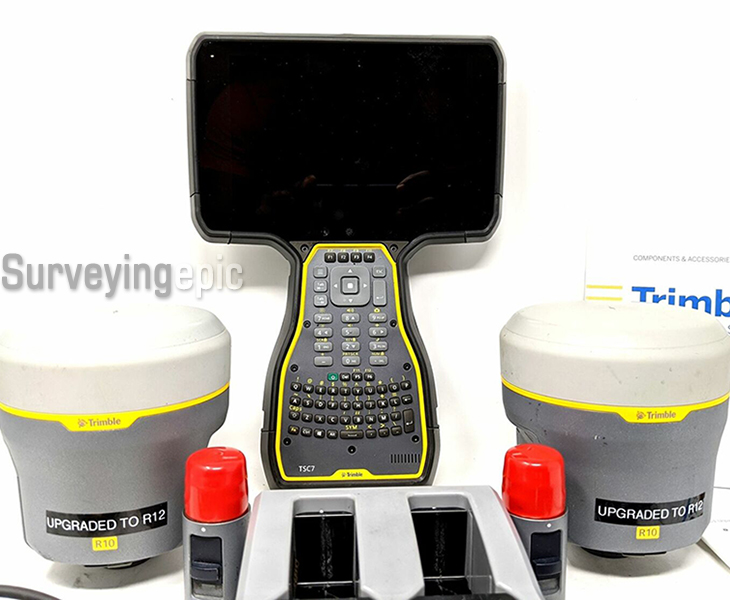

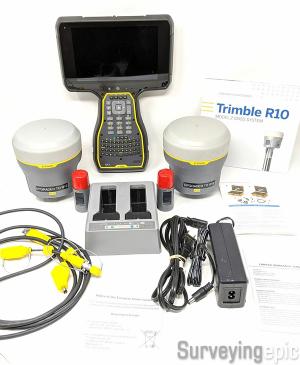

Trimble R12 Base Rover GNSS RTK TSC7

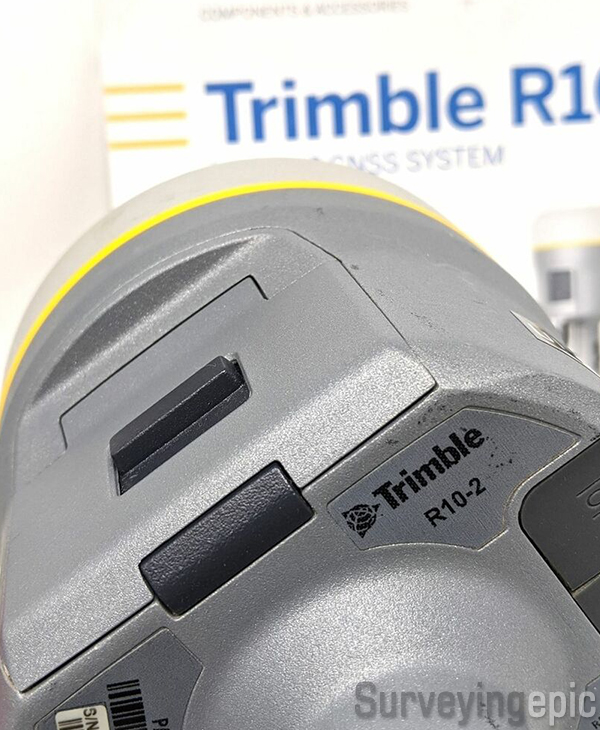

Dual Trimble R10-2 with the R12 Upgrade GNSS RTK Receiver in full working order, System sold “AS IS”

manufacture: 2018
Condition: Excellent condition, like new.
TSC7 Controller: Trimble Access + Roading Module
Calibrated and re-certification.

Dual Trimble R10-2 Includes:
Trimble R12 Base:
    R10 Model 2 with internal 410-470 MHz Radio
    R10 Rechargeable Battery 7.4V 3700mAh 27.3 Wh
    TRIMBLE R10 Dual Battery Charger w/Batt Slot Inserts & Power Supply
    R10 UHF Radio Antenna with SMA Connector 410-470 MHz 0 dB
    R10 Quick Release Adapter

Trimble R12 Rover:
    R10 model 2 with internal 410-470 MHz Radio
    Rechargeable Battery 7.4V 3700 mAh 27.3 Wh
    R10 Quick Release Adapter
    R10 UHF Radio Antenna with SMA Connector 410-470 MHz 0 dB
    Rugged Carrying Case

Trimble Robotic TSC7: Field Controller
    TSC7 Robotic, w/ Trimble Access + Roading Module
    Li-Ion Batteries, Rechargeable,
    AC Adaptor charging cord

Features:

• Trimble ProPoint™ GNSS Technology Improved performance in challenging GNSS conditions**, with groundbreaking signal management that leverages the latest developments in GNSS signal infrastructure and Trimble receiver hardware
• Trimble SurePoint™ Technology Precise position capture with eBubble and compass-based tilt compensation
• Trimble CenterPoint® RTX Corrections Technology Provides RTK level precision worldwide without the need for a base station or VRS network
• Trimble 360 Technology 672 channels with support for all available and future GNSS signals, and improved protection from interference and spoofed signals
• Trimble xFill® Technology Keeps you working in radio and cellular black spots with continuous RTK coverage



More than 30% better performance in challenging environments

Accurate: A precise solution for repeatable results.

Reliable: Real time error estimates in Trimble Access that empower the surveyor.

Productive: Faster convergence means less time spent measuring points in the field.

Trimble R12 features at a glance

• Trimble ProPoint™ GNSS Technology Improved performance in challenging GNSS conditions**, with groundbreaking signal management that leverages the latest developments in GNSS signal infrastructure and Trimble receiver hardware
• Trimble SurePoint™ Technology Precise position capture with eBubble and compass-based tilt compensation
• Trimble CenterPoint® RTX Corrections Technology Provides RTK level precision worldwide without the need for a base station or VRS network
• Trimble 360 Technology 672 channels with support for all available and future GNSS signals, and improved protection from interference and spoofed signals
• Trimble xFill® Technology Keeps you working in radio and cellular black spots with continuous RTK coverag

SPECIFICATIONS:

Max. Precision: 8 mm Horizontal / 15 mm Vertical
Channels: 672
Antenna: Integrated
UHF Radio: Receive & Transmit
RTK Compatible: Yes
xFill: Yes
Memory: 6 GB
Cellular: Yes
Satellites: GPS, GLONASS, Galileo, BeiDou, SBAS

*In head-to-head testing with the Trimble R10-2 in challenging GNSS environments such as near and among trees, and built environments, the Trimble R12 receiver performed at least 30 percent better across a variety of factors, including time to achieve survey precision levels, position accuracy and measurement reliability.

**Challenging GNSS environments are locations where the receiver has sufficient satellite availability to achieve minimum accuracy requirements, but where the signal may be partly obstructed by and/or reflected off of trees, buildings, and other objects. Actual results may vary based on user's geographic location and atmospheric activity, scintillation levels, GNSS constellation health and availability, and level of multipath and signal occlusion.
