Faro Focus S120 Scanner Mint Condition

Faro Focus S120 Scanner, in mint condition, System sold “AS IS”

manufacture: 2012
Condition: Lightly Used, like new condition
Just used in three projects with approximately time: 30 hours Total.

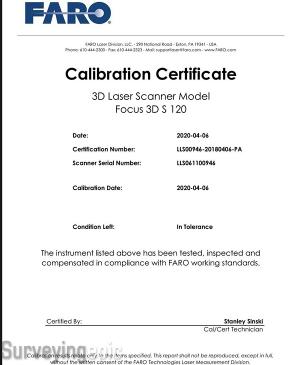

Calibrated and re-certification by FARO.

S120 Features:

• Small and compact: The smallest 3D laser scanner ever built and weighing just 5 kg (11 lb)

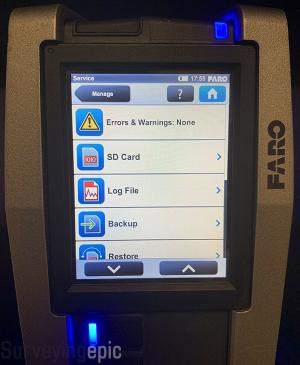

• Intuitive touchscreen display: Control all scanner functions with easy-to-use touch interface
• Integrated colour camera: Photorealistic 3D colour scans with up to 70 megapixels resolution and a parallax-free colour overlay

The FARO Focus3D is a revolutionary, non-contact laser scanner for 3D modeling and documentation that can be operated simply and intuitively via an integrated touchscreen display. In addition to the touch interface, features such as its minimal size and weight make the Focus3D easy to use and allows you to save up to half the scan time compared with conventional 3D laser scanners.

FARO S120 sale includes:
- 1X Focus-3D S120
- 2X PowerBlock Batteries
- 1X Charging Cradle
- 1X Power Supply
- 1X Laser Protection Goggle
- 2X 32GB SD card
- 1X FARO Scene 5.1 include Hard Lock Dongle
- 1X SD Card Reader
- 1X SD Card Cover

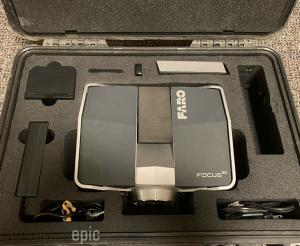

- 1X Rugged Transport Case

FARO Focus 3D S120 | A leap in innovation and effciency to lower your costs

The Focus3D is a high-speed 3D laser scanner for detailed measurement and documentation. With a touch operated screen to control scanning functions and parameters, the Focus3D uses laser technology to produce incredibly detailed threedimensional images of complex environments and large scale geometries in only a few minutes. The resulting image is an assembly of millions of 3D measurement points that provide an exact digital reproduction of existing conditions.

The Focus3D offers the most effcient method for three-dimensional documentation of building construction, excavation volumes, façade and structural deformations, crime scenes, accident details, product geometry, factories, process plants and more. Given its minimal size and weight as well as touch interface, the Focus3D is easy to work with and saves up to 50% of scan time compared to conventional scanners

FARO Focus 3D S120 Perfomance Spesification

Ranging Unit

• Unambiguity interval: 153.49m (503.58ft)
• Range Focus3D 1201: 0.6m - 120m indoor or outdoor with low ambient light and normal incidence to a 90% re?ective surface
• Range Focus3D 20: 0.6m - 20m at normal incidence on >10% matte re?ective surface*
• Measurement speed: 122,000 / 244,000 / 488,000 / 976,000 points/sec
• Ranging error2: ±2mm

Color Unit

• Resolution: Up to 70 megapixel color
• Dynamic color feature: Automatic adaption of brightness

Detection unit

• Vertical feld of view (vertical/horizontal): 305° / 360°
• Step size (vertical/horizontal): 0.009° (40,960 3D pixels on 360°) / 0.009° (40,960 3D pixels on 360°)
• Max. vertical scan speed: 5,820rpm or 97Hz

Laser (Optical transmitter)

• Laser power (cw Ø): 20mW (Laser class 3R)
• Wavelength: 905nm
• Beam divergence: Typical 0.19mrad (0.011°)
• Beam diameter at exit: 3.0mm, circular

Data handling and control

• Data storage: SD, SDHC™, SDXC™; 32GB card included
• Scanner control: Via touch-screen display
• New WiFi(WLAN) access: Remote control, Scan Visualization and download are possible on mobile devices with Flash®

Multi-Sensor

• Dual axis compensator: Levels each scan with an accuracy of 0.015° and a range of ±5°
• Height sensor: Detects the height relative to a fxed point via an electronic barometer and adds it to the scan
• Compass: Electronic compass gives the scan an orientation. A calibration feature is included

Hardware Spesification

• Power supply voltage: 19V (external supply), 14.4V (internal battery) Cable connector: Located in scanner mount
• Power consumption: 40W and 80W respectively (while battery charges) Weight: 5.0kg
• Battery life: Up to 5 hours Size: 240x200x100mm3
• Ambient temperature: 5° - 40°C Maintenance calibration: Annual
• Humidity: Non-condensing Parallax-free: Yes
