TOPCON GM 105 Reflectorless Total Station
TOPCON GM 105 Reflectorless Total Station, in full working order, System sold “AS IS”
Condition: Excellent condition, like new.
Calibrated and re-certification.

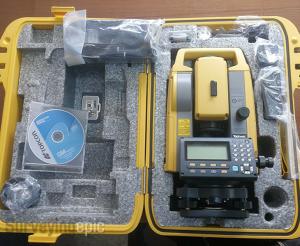

Topcon GM-105 Includes:
- GM-105 Total Station
- BDC70 Battery
- Battery charger w/cable for NA:CDC68A-NA
- Hexagonal wrench 1.3
- Hexagonal wrench 2.5
- Screw driver -2.3
- Lens brush RoHS
- Hexagonal wrench 1.5
- Tool bag
- Silica gel
- Lens hood
- Laser caution sign board
- Silicon cloth
- Quick manual GM
- Manual CDR GM
- Registration card(2YR)
- Carrying Case
Topcon GM-100 total stations – advanced design with superior technology
The GM-100 series was designed from the ground up to deliver the very latest technological advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement.
A world’s first – TSshield
Topcon is proud to offer another world’s first technology in all GM-100 total stations – TSshield. Every instrument is equipped with a telematics-based multi-function communications module providing the ultimate security and maintenance capabilities for your investment.
If the activated instrument is lost or stolen, send a coded signal to the instrument and disable it – the total station is secure anywhere in the world.
In the same module, you have daily connectivity to cloud-based Topcon servers that can inform you of available software updates and firmware enhancements.
Onboard TopBasic Program
Run on-board basic layout and topo programs with the GM series. Store up to 50,000 points. Use the convenient USB transfer method to move data on and off the instrument.
The GM-105 Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It’s rugged waterproof/dustproof magnesium-alloy housing encases an ultra-powerful 6,000m prism range 1.5mm accuracy EDM, Best-in-class 1″ angle accuracy angle encoder system, and 28 hour battery-life power supply. The GM-100 also features dual axis compensation, 32 GB USB, Bluetooth to 10m and TSshield™ telematics for ultimate security and investment protection.
Designed to deliver the latest technological advantages in a sleek design, each GM-100 total station is equipped with a best-in-class EDM. The total station measures up to 5,000 meters to standard prisms (6,000 meters under good conditions) and up to 800 meters in reflectorless mode. Other features include a built-in laser plummet, dual-axis compensation, Bluetooth® connectivity, and a battery life of up to 28 hours. In addition to an internal memory of 50,000 points, the total station also features a USB 2.0 slot for up to 32GB of storage. TSshield™ technology provides ultimate security and maintenance capabilities for your total station thanks to a telematics-based multi-function communications module. If an activated total station is lost or stolen, just send a coded signal to the instrument and disable it – anywhere in the world. You can also access cloud-based Topcon servers for available software updates and firmware enhancements. Waterproof/dustproof IP66 design.
Topcon GM-105 is upgraded version of Topcon ES-105 Total Station.
- 1,000 m non-prism range
- 6,000 m prism range
- “Best-in-class” 5″angle accuracy
- Up to 32 GB storage
- Waterproof/dust-proof IP66
- Environmentally protected
- Compatible with industry standard thumb drives
- 21 hour battery life in normal mode
