Creaform GoSCAN 50 3D Scanner

Creaform GoSCAN 50 3D Scanner


Contact Us

New 3D scanner Creaform GoSCAN 50 - 1 year warranty
Easy 3D scanning: see your object projected in 3D directly on the HD display

    Scan Area: 380h380 mm
    Resolution: 0.5 mm
    Accuracy: 100 microns
    The depth of field of field: 250 mm
    The size of the scanned object: 0.3-3 m
    Light Source: White LED

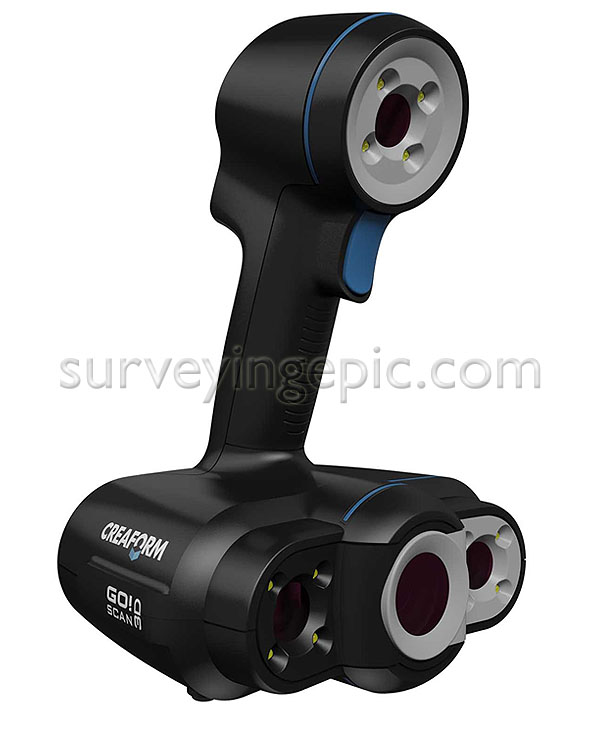

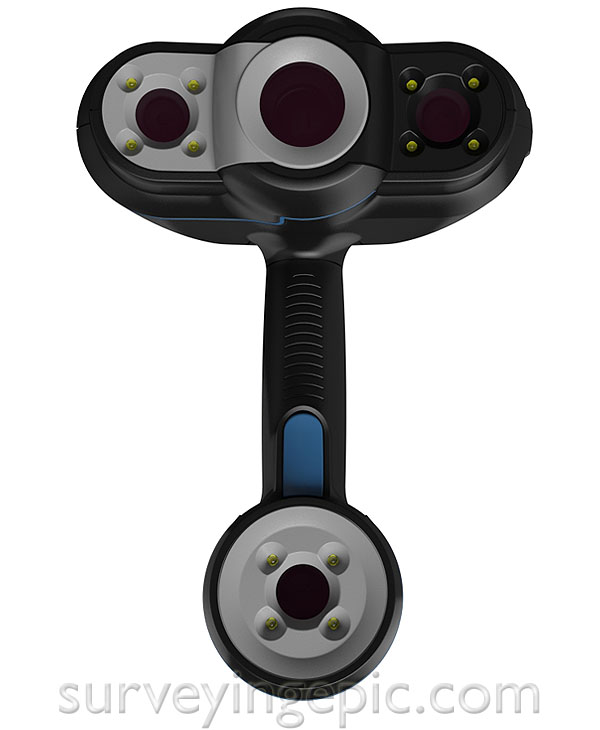

3D Scanner Go! SCAN 50 - the top model in the line GO! SCAN company Creaform. This is a mobile and easy-to-use device designed primarily for 3D-scanning medium and large sites (ranging from 0.3 to 3 meters). GO! SCAN 50 is characterized by high speed, the ability to transmit the color and geometry of the object, a great autonomy and ease of use. The versatility of this 3D-scanner is used to solve problems in the field of reverse engineering, manufacturing, medicine, archeology, design, and other industries.

Technology of 3D-scanning
Laser: Laser triangulation phase
Light source: Light-emitting diode

Properties of 3D-scanning
Transfer color: Yes
Capture textures: Yes
3D-Resolution: 0.5 mm
Accuracy: 0.1 mm
Scan speed: 550 000 measurements per second
Scan Area: 380h380 mm
Operating distance from the subject: 400 mm

Software: VXelements
Output format: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
Interface: USB 2.0
Supported operating systems: Windows Vista / XP / 7/8 / 8.1

Dimensions of the device
Dimensions: 150x172x251 mm
Weight: 0.95 kg

- 3D-Scanner GO! SCAN 50 CREAFORM High Speed
- Software licenses VXelements
- 2X Battery
- 1000 markers
- USB-cable 4m
- 18V power supply
- Certified calibration
- 1 year warranty
- 5 years for software updates and technical support

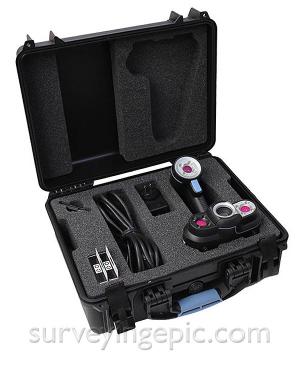

- Protective carrying case
