Creaform GoSCAN 20 3D Scanner

Creaform GoSCAN 20 3D Scanner

$9,000

Contact Us

New 3D scanner Creaform GoSCAN 20 - 1 year warranty
Easy, Fast, Reliable 3D scanning. suited for scanning small parts with intricate details

Features:
    550,000 measurements / sec
    Resolution: 0.2 mm
    Accuracy: 100 microns
    The depth of field of field: 100 mm
    The size of the scanned object: 0.05-0.5 m
    Light Source: White LED


3D Scanner Go! SCAN 20 - a compact and easy to use 3D-scanner series GO! SCAN. It will provide you high quality color scanning and is intended primarily for high-precision 3D-scan small objects of up to half a meter. Lightweight and easy to use, 3D-scanner GO! SCAN 20 does not require special surface preparation: just take it in your hand and start to work. This scanner converts the data into all popular digital formats and has found application in many fields of science and industry: from archeology to engineering.

Technology of 3D-scanning
Laser: Laser triangulation phase
Light source: Light-emitting diode

Properties of 3D-scanning
Transfer color: Yes
Capture textures: Yes
3D-Resolution: 0.2 mm
Accuracy: 0.1 mm
Scan speed: 550 000 measurements per second
Scan Area: 143h108 mm
Operating distance from the subject: 380 mm

Software
Software: VXelements
Output format: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
Interface: USB 2.0
Supported operating systems: Windows Vista / XP / 7/8 / 8.1

Dimensions of the device
Dimensions: 154x178x235 mm
Weight: 0.93 kg

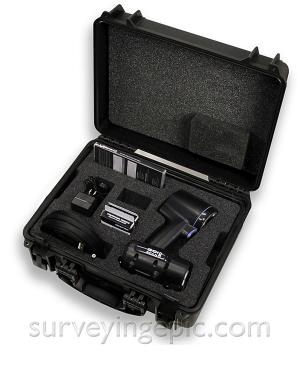

Includes:
- 3D-Scanner GO! SCAN 20 CREAFORM High Resolution
- Software licenses VXelements
- 2X Battery
- 1000 markers
- USB-cable 4m
- 18V power supply
- Certified calibration
- 1 year warranty
- 5 years for software updates and technical support
- Protective carrying case
