Artec Leo Wireless 3D Scanner
Open Box New Model Artec LEO Wireless AI-driven 3D Scanner. 1-Years Manufacturer Warranty, License 1 Year Artec Studio V.16 Professional Software and Maintenance Contract
$17,800
Contact UsOpen Box New Model Artec LEO Wireless AI-driven 3D Scanner. 1-Years Manufacturer Warranty, License 1 Year Artec Studio V.16 Professional Software and Maintenance Contract
Artec Leo
WIRELESS, AI-DRIVEN SCANNER
Meet the 2022 Artec Leo, the world's first AI-driven, wireless 3D scanner, revolutionizing data capture with its unparalleled ease and accuracy. No cables, no computer—3D scan anything, anywhere with this all-in-one solution that features a built-in NVIDIA Jetson TX2 processor, 5” HD display, and a long-lasting battery. Capturing high-quality 3D data is simpler than ever with the Artec Leo.
Key Features of the Artec Leo 3D Scanner:
- Fully wireless 3D scanning, AI-driven
- Powerful on-board real-time processing
- Wide object size and range compatibility
- Advanced texture and geometry capture technology
- Smart, target-free data capture
- Scan-to-cloud and WiFi connectivity
The 2022 Artec Leo WIRELESS, AI-DRIVEN SCANNER remains at a stable and optimal temperature throughout the scanning process to bring your accuracy to the next level, while a calibration certificate and Leo Calibration Kit guarantee top quality is maintained every step of the way.

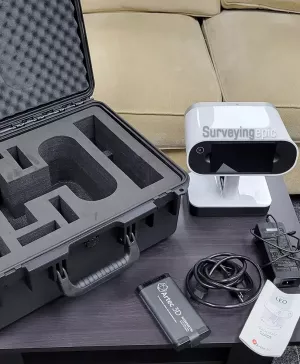

Includes:
- Artec LEO Wireless AI-driven scanner
- License of Artec Studio V.16 Professional Software (yearly subscription)
- 1X Battery
- 1X USB Cable
- 1X Power Supply
- Hard Case
Artec LEO Wireless AI-driven Brochure
Up to 0.1 mm point accuracy
The resolution of your scan data steps up 2x while removing noise for you, leaving you with the tidiest noise-free 3D model. Hard-to-reach areas and difficult-to-scan surfaces such as thin ridges or sharp corners are now easier than ever to capture, with enhanced reconstruction and improvements to edge curvatures. Forget about texture bias too – there’s no room for false geometry from high-contrast texture here. Expect true-to-life 3D models in stunningly high resolution.
Interactive real-time scanning hints, hybrid target-free tracking system, smart scanning modes for faster data processing – just a few things that make our Leo the easiest 3D scanner to use. Just pick it up, point at whatever you want to scan, and hit that start button. Leo will take care of the rest.
Leo’s unique features: a compact design, long-lasting battery, interactive touch screen, scan-to-cloud, WiFi connectivity, and remote control combine to give you all the scanning and data transfer functionality you might require, right from the device itself without the need for additional devices, power or data cables.
Interactive 5.5” touch panel
With Leo’s intuitive UI, you can manage your device, scanning process, and scan data. The touch screen builds a real-time replica you can interact with while you scan, showing you areas that need attention, and helping you quickly get the best results.
Technical Specifications of the Artec Leo Scanner
| GENERAL | |
|---|---|
| Technology | 3D Scanner |
| Type | Handheld |
| Product Dimensions (W × D × H) |
231×162×230mm (9.09”×6.38”×9.06”) |
| Product Weight | 2.6kg (5.7lb) |
| ACCURACY & RESOLUTION | |
| 3D Point Accuracy | Up to 0.1 mm |
| 3D Resolution | Up to 0.2 mm |
| 3D Accuracy Over Distance | Up to 0.1 mm + 0.3 mm/m |
| ALGORITHMS | |
| Algorithms | HD Mode Hybrid Geometry and Texture Tracking Geometry and Texture Based Data Processing Algorithms Auto Background Removal |
| FIELD OF VIEW | |
| Working Distance | 0.35 – 1.2m |
| Volume Capture Zone | 160,000 cm³ |
| Linear Field of View H × W @ Closest Range |
244 × 142mm |
| Linear Field of View H × W @ Furthest Range |
838 × 488mm |
| Angular Field of View H × W |
38.5 × 23° |
| TEXTURE | |
| Texture Resolution | 2.3 mp |
| Colors | 24 bpp |
| Photo Texture | Yes |
| CAPTURE RATE | |
| 3D Reconstruction Rate for Real-Time Fusion |
up to 22 fps |
| 3D Reconstruction Rate for 3D Video Recording |
up to 44 fps |
| 3D reconstruction rate for 3D video streaming |
up to 80 fps |
| Data Acquisition Speed | up to 35 mln points/s |
| 3D Exposure Time | 0.0002 s |
| 2D Exposure Time | 0.0002 s |
| LIGHT SOURCE | |
| 3D Light Source | VCSEL |
| 2D Light Source | White 12 LED Array |
| HARDWARE | |
| Position Sensors | Built-in 9 DoF inertial system |
| Display/Touchscreen | Integrated 5.5” half HD, CTP, Optional Wi-Fi/Ethernet video streaming to external device |
| Multi-Core Processing | Yes |
| Embedded Processors | NVIDIA® Jetson™ TX2 Quad-core ARM® Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores |
| Interface | Wi-Fi, Ethernet |
| Internal Hard Drive | 512 GB SSD |
| COMPUTER REQUIREMENTS | |
| Scanning | No computer required |
| Data Processing | Windows 8.1, 10 (x64), Windows 11 |
| Recommended | Intel Core i7 or i9 64+ GB RAM NVIDIA GPU with 8+ GB VRAM CUDA 6.0+ |
| Minimum Requirements (HD) | Intel Core i7 or i9 32 GB RAM NVIDIA GPU with CUDA 6.0+ and at least 4 GB VRAM |
| Minimum Requirements (SD) | Intel Core i5, i7 or i9 32GB RAM GPU with 2 GB RAM A computer is needed only for data processing. Scanning does not require a computer. |
| OUTPUT FORMATS | |
| 3D Mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| CAD | STEP, IGES, X_T |
| Measurements | CSV, DXF, XML |
| POWER SOURCE | |
| Power Source | Built-in exchangeable battery Optional AC power |
FAQ
What is HD Mode for Artec Leo?
HD is a scanning mode powered by artificial intelligence algorithms that allows you to create sharper, cleaner, and far more detailed 3D models with a resolution 2X higher than that of the original SD data. In HD Mode, a resolution of up to 0.2 mm can be achieved and your Leo can capture much smaller and thinner elements, hard-to-reach areas, black and shiny surfaces and other parts that were difficult or impossible to capture before. HD Mode is available for Leo and Eva scanners running Artec Studio 15.1 or higher.
What types of objects can I scan with Artec Leo?
Thanks to its extended field of view, Leo excels at capturing both medium-sized objects such as gearboxes, castings, furniture, statues, and the human body, as well as large objects like automotive parts, turbines, ship propellers, small boats, and room interiors.
How is Artec Leo different from other scanners?
Leo is completely wireless. While other 3D scanners need to be connected to a computer or tablet to display scanning results, Leo has an integrated computer and touch screen onboard where you can see results in real time.
Why is it important that Artec Leo is completely wireless?
Portability is key when 3D scanning medium and large objects, such as cars or airplanes. A regular 3D scanner connected to a PC for scanning can be inconvenient to carry around and maneuver, especially for hard-to-reach areas. ou can walk around the object holding the Leo like you would a video camera, without worrying about the wires that could get in your way, or needing to switch to a different screen to see the results. It’s all there, conveniently combined in one single unit.
Can I scan people / anatomy with the Artec Leo?
Yes. Artec Leo can scan people and anatomy among many other versatile applications.
