Sokkia GRX2 Dual Base and Rover RTK
Sokkia GRX2 Dual Base and Rover RTK, 226 GNSS channel - Dual high frequency antenna.
manufacture: 2013
Condition: demo used only, excellent condition.
GRX2's with GPS + GLONASS (mint unit like new)

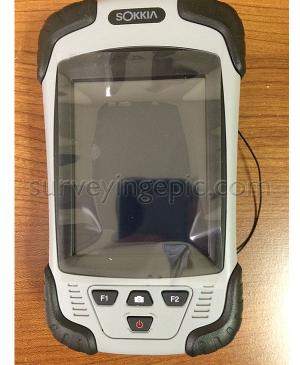

Sokkia S10 field controller installed Carlson Survey Software (cell phone capabilities, and camera).
Features:
226 GNSS channels
Dual high-frequency antenna
Built-in Bluetooth
Compatible with MAGNET Software
RTK rover operations
UHFII 440-470
Voice navigation
7.5-hour battery life
Water resistant and dustproof to IP-67

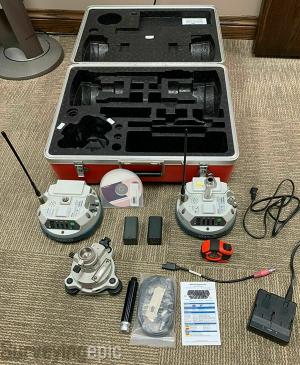

Sokkia GRX2 Dual Base and Rover RTK Includes:
- 2X Sokkia GRX2 GNSS Receiver
- 1X 9-pin serial cable
- 1X 100mm Height Adapter
- 1X 3m HI Tape
- 1X Bayonet adapter
- 1X Tribrach with optical plummet
- 1X Optical plummet adapter
- 2X UHF 410-440 antenna
- 4X Removable Battery
- 1X Sokkia S10 field controller kit
- 2X Chargers
- 1X Tribrach
- 1X Serial Cable
- 1X Tripod Base leveling product
- 1X Tripod Cane
- 1X 2.00m Pole

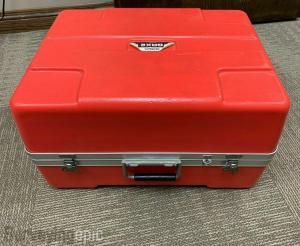

- 1X Hard-Case for Transportation
Sokia GRX2 45010-470 Mhz GNSS Base & Rover Receiver
Positioning made easy
This fully integrated dual-constellation RTK GNSS receiver brings a new level of versatility and flexibility into your precision applications. The GRX2 provides unmatched usability and versatility that’s sure to improve your performance.
And like all of our products, you can customize it to meet your needs and create your own workflows.
• Fully Scalable
• 226 Channels (GPS+Glonass+SBAS)
• Integrated UHF+Cellular+ Bluetooth®
• Voice Navigation
• Compact, Watertight, and Rugged
• RTK and Static survey operations
Fully Scalable Architecture
The GRX2 is affordable and scalable. You can start with it as a single frequency GPS only receiver and at any time add a radio or cellular modem for additional signal capability for GLONASS.
Multi-channel Support
Featuring 226 tracking channels with Universal Tracking Technology, the GRX2 has you covered. With programmable channels for tracking available signals, the GRX2 supports SBAS, QZSS, and QLL.
Triple Wireless Technologies
The three most commonly-used wireless technologies can be integrated into the GRX2 receiver. Digital UHF or FH915 SS modem (receiver/transmitter) for RTK base and rover, GSM/HSPA modem for network RTK, and MAGNET® Relay Bluetooth® modem for controller and other PCs.
| Specifications | |
| Tracking Capabillity | |
| Number of Channels*1 | 226 channels with optimized satellite tracking technology |
| Tracking Signals | |
| GPS | L1, L2, L2C |
| GLONASS | L1, L2 |
| SBAS | L1 C/A WAAS/MSAS/EGNOS/GAGAN |
| QZSS | L1 C/A |
| Antenna | Integrated |
| Positioning Accuracy*2 | |
| Static/Fast Static | H: 3.0 mm + 0.4 ppm, V: 5.0 mm + 0.5 ppm |
| Precision Static* * | H: 3.0 mm + 0.1 ppm, V: 3.5 mm + 0.4 ppm |
| RTK (L1 + L2) | H: 5 mm + 0.5 ppm, V: 10 mm + 0.8 ppm |
| DGPS | < 0.5 m |
| User Interface | |
| Operation | Single-button operation for power, receiver reset, memory initialization |
| Display panel | 22 LED status indicators |
| Voice navigation | Multi-lingual voice messages for receiver status information |
| Data Management | |
| Update/output rate*3 | 1 Hz, 5 Hz, 10 Hz, 20 Hz (10 Hz RTK Standard) |
| Communication Ports | RS-232C (4,800 to 115,200 bps) |
| Real Time Data Output | TPS, RTCM SC104 v2.x, 3.x and MSM, CMR/CMR+ |
| ASCII Output | NMEA 0183 version 2.x, 3.x and 4.x |
| Wireless Communication | |
| Bluetooth® modem | V2.1 + EDR, Class 2, 115,200 bps*4 |
| Digital UHF II modem*4 | Internal, receiver (RX) and transmitter (TX), 410 to 470 MHz |
| Cellular | Integrated HSPA+/CDMA |
| FH915 spread spectrum radio | N/A |
| Environmental | |
| Dust/Water Protection | IP67 (IEC 60529:2001) at closing all connector caps. Protected against temporary immersion up to 1 m (3.3 ft.) depth. |
| Shock | 2 m (6.56 ft.) pole drop |
| Operating Temperature | GRX2 receiver: -40 to 65°C (-40 to 149°F) BDC70 battery: -20 to 65°C (-4 to 149°F /GSM modems: -20 to 55°C (-4 to 131°F) |
| Storage Temperature | -45 to 70°C (-49 to 158°F) |
| Humidity | 100%, condensing100%, condensing |
| Physical | |
| Enclosure | Magnesium alloy housing |
| Size (w x h) | 184 x 95 mm (7.24 x 3.74 in.) |
| Weight (GRX2 receiver / BDC70 battery) | 1.0 kg (2.20 lb.) / 195 g (6.9 oz.) |
| Power Supply | |
| Standard battery BDC70 | Detachable, Li-ion battery, 7.2V, 5240 mAh |
| Operating time at 20°C (68°F) | >7.5 hours in static mode with Bluetooth® connection |
| Charger CDC68 | Recharging time: Approx. 4 hours at 25°C (77°F) |
| External power | 6.7 to 18V DC |
| ** Under nominal observing conditions and strict processing methods, including use of dual frequency GPS, precise ephemerides, calm ionospheric conditions, approved antenna calibration, unobstructed visibility above 10 degrees and an observation duration of at least 3 hours (dependent on baseline length). *1 Number of channels and tracked signals vary according to receiver configurations. *2 Accuracy depends on the number of satellites used, obstructions, satellite geometry (DOP), occupation time, multipath effects, atmospheric conditions, baseline length, survey procedures and data quality. *3 1 Hz standard. Higher rates available as options. *4 Internal “FH915 modem” or “FH915+Cellular modem” available as factory options. Bluetooth® Class 1 when used with a Class 1 field controller. *5 Use with an appropriate AC power cable. *6 Under nominal observing conditions and strict processing methods, including use of dual frequency GPS, precise ephemerides, calm ionospheric conditions, approved antenna calibration, unobstructed visibility above 10 degrees and an observation duration of at least 3 hours (dependent on baseline length). - Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sokkia is under license. Other trademarks and trade names are those of their respective owners. - Designs and specifications are subject to change without notice. - Product colors in this brochure may vary slightly from those of the actual products owing to limitations of the printing process. |
|
